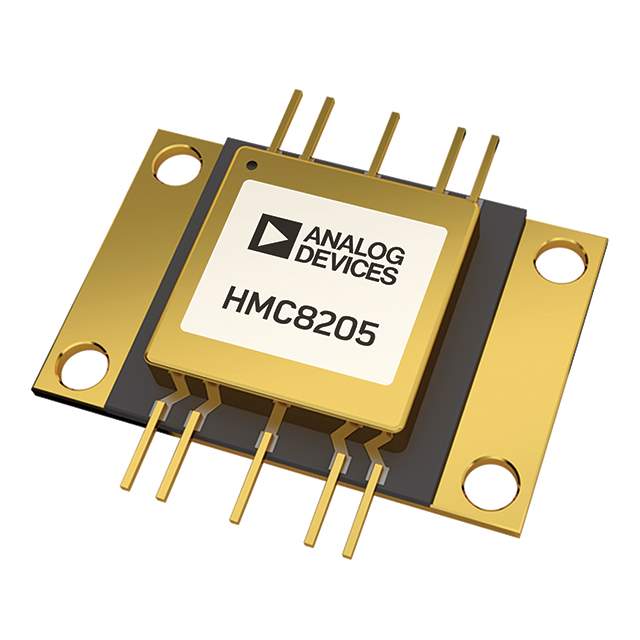

The HMC8205BF10 from Analog Devices Inc. is a high-performance, wideband RF amplifier designed to cater to a variety of applications such as wireless infrastructure, radar systems, communication test equipment, and electronic warfare. This gallium nitride (GaN) MMIC (Monolithic Microwave Integrated Circuit) amplifier provides users with an exceptional combination of power and efficiency.

Key Features

• Frequency Range: The HMC8205BF10 operates over a wide frequency range from 300 MHz to 6 GHz, making it versatile for a multitude of RF and microwave applications.
• High Output Power: It delivers a high output power of 45.5 dBm (typical) which is essential for applications requiring high power density.
• Power Added Efficiency: With a power added efficiency (PAE) of up to 55%, this amplifier is optimized for energy-efficient operation, which is critical in high-power systems.
• Gain: The amplifier offers a large signal gain of up to 28 dB, ensuring signal strength is maintained across its operating range.
• Supply Voltage: It operates on a 50V supply voltage, providing robust performance for high-voltage applications.
• Integrated Surface Mount Package: The HMC8205BF10 comes in a compact 10-lead flanged ceramic package (BF10) that is suitable for surface mount technology (SMT), allowing for easier integration into various systems.

Applications

The HMC8205BF10 is well-suited for:

• Telecommunications and 5G infrastructure
• Commercial and military radar systems
• Broadband communications systems
• Test instrumentation
• Electronic countermeasures and electronic warfare

Conclusion

The Analog Devices HMC8205BF10 RF amplifier is a highly capable component that offers a blend of power, efficiency, and bandwidth. Its robust design and high power output make it an ideal choice for demanding applications that require reliable, high-performance RF amplification. With its wide frequency range and high efficiency, the HMC8205BF10 stands out as a versatile solution for advanced RF systems.
