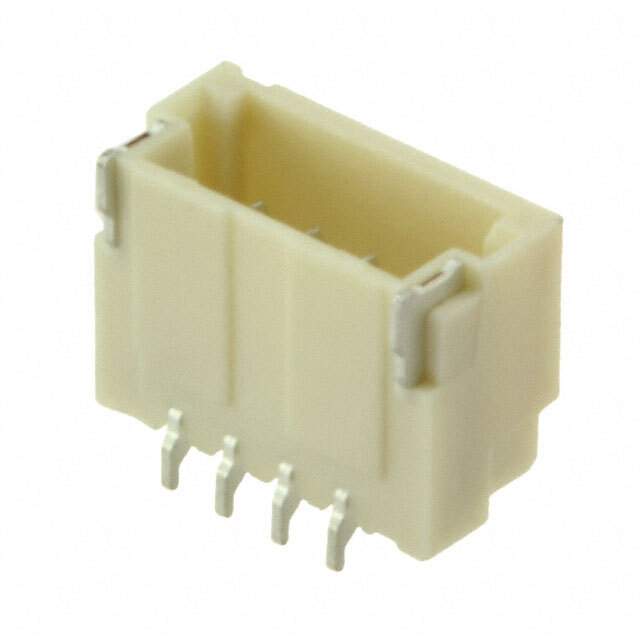

Same model may have multiple batches, images only for reference.

M40-4010446

Name: M40-4010446
Brand: Harwin Inc.
SKU: 1339822
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	M40-4010446
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 4POS 1MM / Connector Header Surface Mount, Right Angle 4 position 0.039" (1.00mm)
Datasheet	M40-4010446 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	M40
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Insulation Height	0.114" (2.90mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA9T) , Nylon 9T
Features	Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	1A
Voltage Rating	50V
Base Product Number	M40-401
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339822-M40-4010446
Ultra Librarian 3D Model	Ultra Librarian M40-4010446 CAD Model

Alternative Products

Description

The Harwin M40-4010446 is a board to cable/wire connector with a 1.00mm pitch mating.

Shrouding: 4 Wall
Mounting Type: Right-Angle Surface Mount
Series: M40
Positions: 4
Package: Bulk
Standard Package: 100 pieces
Contact Finish: Tin
Contact Material: Phosphor Bronze
