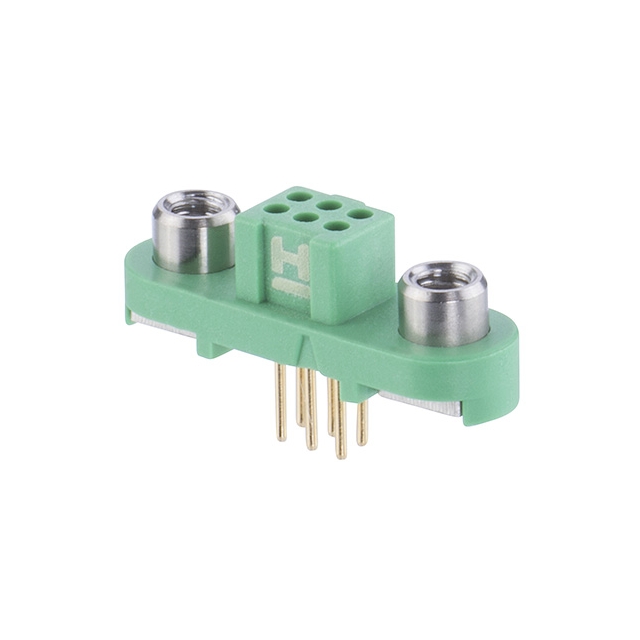

Same model may have multiple batches, images only for reference.

G125-FV10605F2R

Name: G125-FV10605F2R
Brand: Harwin Inc.
SKU: 1339732
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	G125-FV10605F2R
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 6POS 0.049 GOLD PCB / 6 Position Receptacle Connector 0.049" (1.25mm) Through Hole Gold
Datasheet	G125-FV10605F2R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Harwin Inc.
Series	Gecko SL Reverse Fix
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.049" (1.25mm)
Number of Rows	2
Row Spacing - Mating	0.049" (1.25mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Screw Lock
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Insulation Color	Green
Insulation Height	0.207" (5.25mm)
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-65°C ~ 150°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Mated Stacking Heights	7.25mm, 7.33mm
Features	Mating Flange, Pick and Place, Polarizing Key
Current Rating (Amps)	2A
Voltage Rating	450V
Insulation Material	Polyamide (PA4T) , Nylon 4T, Glass Filled, Halogen Free
Contact Shape	Circular
Contact Material	Copper Alloy
Contact Finish Thickness - Post	8.00µin (0.203µm)
Base Product Number	G125-FV1
Standard Package	250
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339732-G125-FV10605F2R
Ultra Librarian 3D Model	Ultra Librarian G125-FV10605F2R CAD Model

Alternative Products

Description

The Gecko SL Reverse Fix series connector is a female socket receptacle with a 6-position header and polarizing key.

Series: Gecko SL Reverse Fix
Type: Female Socket Receptacle
Positions: 6
Configuration: Header with Polarizing Key
Connection Type: Board-to-Board or Cable
Pitch-Mating: 0.049 inches
Contact Material: Copper Alloy
Contact Finish: Gold (8.00μin)
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Insulation Color: Green
Voltage Rating: 450V
Current Rating: 2A
Mounting Type: Through Hole
Row Spacing-Mating: 0.049 inches
Contact Length-Post: 0.118 inches
Insulation Height: 0.207 inches
Operating Temperature: -65°C to 150°C
