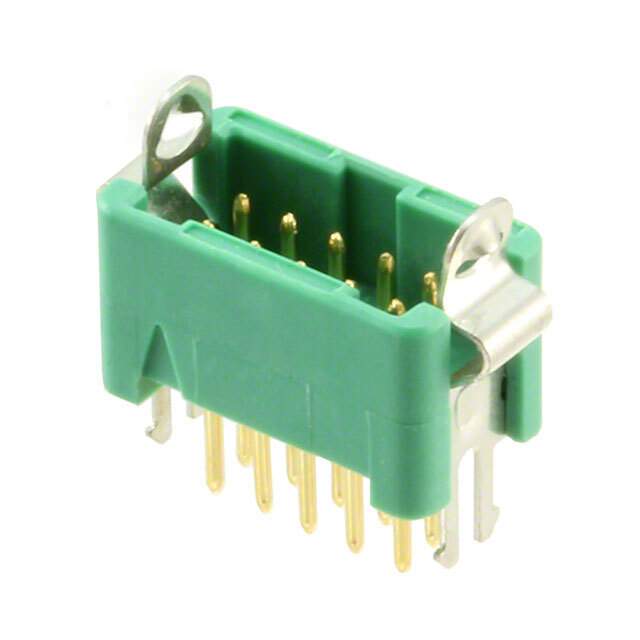

Same model may have multiple batches, images only for reference.

G125-MV11005L1P

Name: G125-MV11005L1P
Brand: Harwin Inc.
SKU: 790284
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	G125-MV11005L1P
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	1.25MM M HSG 10POS / Conn Shrouded Header HDR 10 POS 1.25mm Solder ST Thru-Hole Loose
Datasheet	G125-MV11005L1P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Harwin Inc.
Series	Gecko
Packaging	Cut Strip
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.049" (1.25mm)
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Latch Lock
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.193" (4.90mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8μin (0.20μm)
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features	Board Lock, Pick and Place
Operating Temperature Range	-65°C ~ 150°C
Material Flammability Rating	UL94 V-0
Insulation Color	Green
Current Rating	2A per Contact
Mated Stacking Heights	7.25mm, 7.35mm, 7.7mm
Win Source Part Number	790284-G125-MV11005L1P
Popularity	Medium
Supply and Demand Status	Limited
Family Name	G125
ECCN	EAR99
Country of Origin	United Kingdom
Halogen Free	Compliant
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian G125-MV11005L1P CAD Model

Alternative Products

Description

The Harwin Inc. Gecko 790284-G125-MV11005L1P is a board-to-board or cable connector with a shrouded 4 wall design.

Number of Positions: 10
Mounting Style: Through Hole
Operating Temperature Range: -65°C to 150°C
Features: Board Lock, Pick and Place
