Same model may have multiple batches, images only for reference.

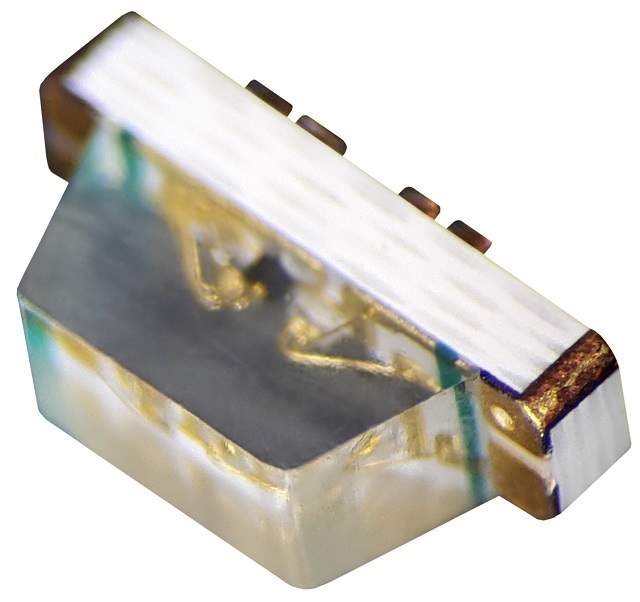

B3213GBR-05C0002Q3U1930

Name: B3213GBR-05C0002Q3U1930
Brand: Harvatek
SKU: 1121443
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	B3213GBR-05C0002Q3U1930
Manufacturer	Harvatek
Catalog	LED Indication - Discrete
Description	LED RGB FULL COLOR (2.70(L)X1.3 / Red, Green, Blue (RGB) 620nm Red, 532nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 2.9V Green, 2.9V Blue 4-SMD, No Lead
Datasheet	B3213GBR-05C0002Q3U1930 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	Harvatek Corporation
Package	Tape & Reel
Color	Red, Green, Blue (RGB)
Configuration	Common Anode
Millicandela Rating	33.5mcd Red, 129mcd Green, 33.5mcd Blue
Lens Style	Rectangle with Flat Top
Lens Size	2.10mm x 0.80mm
Voltage - Forward (Vf) (Typ)	1.9V Red, 2.9V Green, 2.9V Blue
Current - Test	5mA Red, 5mA Green, 5mA Blue
Viewing Angle	130°
Mounting Type	Surface Mount, Right Angle
Wavelength - Dominant	620nm Red, 532nm Green, 470nm Blue
Wavelength - Peak	628nm Red, 522nm Green, 466nm Blue
Package / Case	4-SMD, No Lead
Supplier Device Package	Chip LED
Dimension	2.70mm L x 1.35mm W
Height (Max)	0.90mm
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8541.41.0000
Other Names	,3147-B3213GBR-05C0002Q3U1930V1.3CT-ND,3147-B3213GBR-05C0002Q3U1930V1.3CT,3147-B3213GBR-05C0002Q3U1930TR,3147-B3213GBR-05C0002Q3U1930DKR,3147-B3213GBR-05C0002Q3U1930V1.3TR-ND,B3213GBR-05C0002Q3U1930 V1.3,3147-B3213GBR-05C0002Q3U1930V1.3TR,3147-B3213GBR-05C0002Q3U1930CT
Standard Package	3,000
Win Source Part Number	1121443-B3213GBR-05C0002Q3U1930
Ultra Librarian 3D Model	Ultra Librarian B3213GBR-05C0002Q3U1930 CAD Model

Alternative Products

Description

The B3213GBR-05C0002Q3U1930 is an optoelectronics component in the LED indication - discrete category.

Color: Red, Green, and Blue (RGB)
Configuration: Common anode
Package: Tape and reel
Standard Package: 3,000
Viewing Angle: 130 degrees
Height: 0.90mm
Mounting Type: Surface mount, right-angle
Package/Case: 4-SMD, no lead
Voltage-Forward (Vf): 1.9V (Red), 2.9V (Green), 2.9V (Blue)
Current-Test: 5mA (all colors)
Wavelength-Dominant: 620nm (Red), 532nm (Green), 470nm (Blue)
Wavelength-Peak: 628nm (Red), 522nm (Green), 466nm (Blue)
ECCN: EAR99
Halogen-Free: Compliant
Alternative Parts: Available
