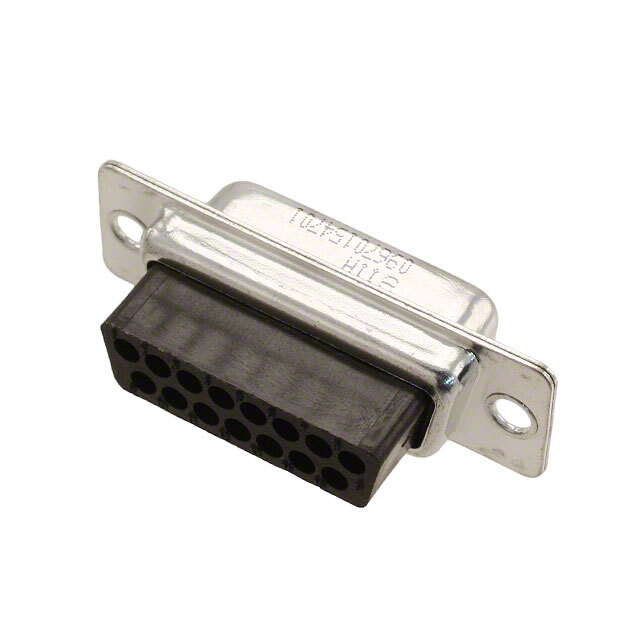

9670154701 HARTING – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

9670154701

Part No 9670154701
Manufacturer HARTING
Catalog D - Sub, D - Shaped Connectors - Housings
Description CONN D-SUB HOUSING RCPT 15POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsD-Sub, D-Shaped ConnectorsD-Sub, D-Shaped Connector Housings
Manufacturer HARTING
Packaging Tray
Part Status Active
Connector Style D-Sub
Connector Type Receptacle for Female Contacts
Number of Positions 15
Number of Rows 2
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Mounting Type Panel Mount
Flange Feature Housing/Shell (Unthreaded)
Shell Material, Finish Steel, Tin Plated
Operating Temperature -55°C ~ 125°C
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Note Contacts Not Included
Ultra Librarian 3D Model Ultra Librarian 9670154701 CAD Model
