Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr HARTING
Series DIN 41612
Package Bulk
Connector Type Header, Male Pins
Number of Positions 30
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style 3R
Level, Class 2
Mounting Type Through Hole
Termination Solder
Contact Finish Gold-Palladium
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Thermoplastic, Glass Filled
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340998-09291306903
Ultra Librarian 3D Model Ultra Librarian 09291306903 CAD Model

Description

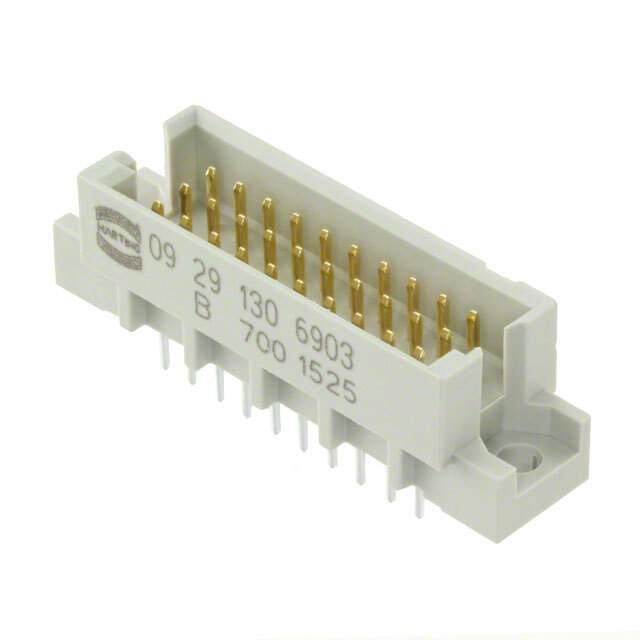

The 09291306903 is a DIN 41612 header connector from HARTING.

  • Positions: 30
  • Positions Loaded: All
  • Pitch: 0.100" (2.54mm)
  • Termination: Soldering
  • Contact Finish: Gold-Palladium
  • Insulation Material: Thermoplastic, Glass Filled
  • Flammability Rating: UL94 V-0
  • Current Rating: 2A
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Through Hole
  • Application: Backplane Connectors
