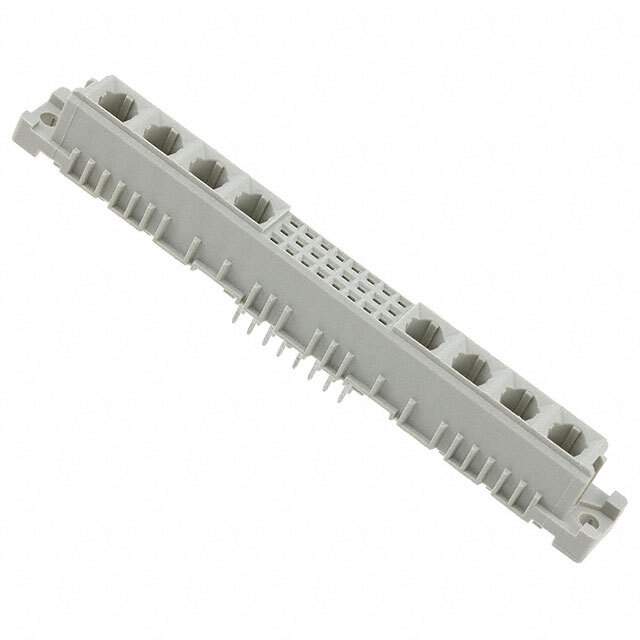

Part No 09032246865
Manufacturer HARTING
Catalog Backplane Connectors
Description CONN DIN RCPT 32POS PCB GOLD / 32 (24 + 8 Coax or Power) Position Din Connector Receptacle, Female Sockets Gold or Gold-Palladium Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr HARTING
Series DIN 41612
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 32 (24 + 8 Coax or Power)
Number of Positions Loaded 24
Pitch 0.100" (2.54mm)
Number of Rows 3
Style M-flat
Level, Class 2
Mounting Type Through Hole
Termination Solder
Contact Finish Gold or Gold-Palladium
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT) , Glass Filled
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350225-09032246865
Ultra Librarian 3D Model Ultra Librarian 09032246865 CAD Model

Description

This is a DIN 41612 series electronic component with a number of positions of 32 (24 + 8 Coax or Power).

  • Positions: 32 (24 + 8 Coax or Power)
  • Pitch: 0.100 inches (2.54mm)
  • Connector Type: Receptacle
  • Socket Type: Female
  • Loaded Positions: 24
  • Rows: 3
  • Termination: Solder
  • Contact Finish: Gold or Gold-Palladium
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Flammability Rating: UL94 V-0
  • Standard Package: 20
  • Style: M-Flat
  • Level/Class: 2
  • Mounting Type: Through Hole
  • Temperature Range: -55°C to 125°C
  • Current Rating: 2A
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4040
  • Manufacturer: HARTING
