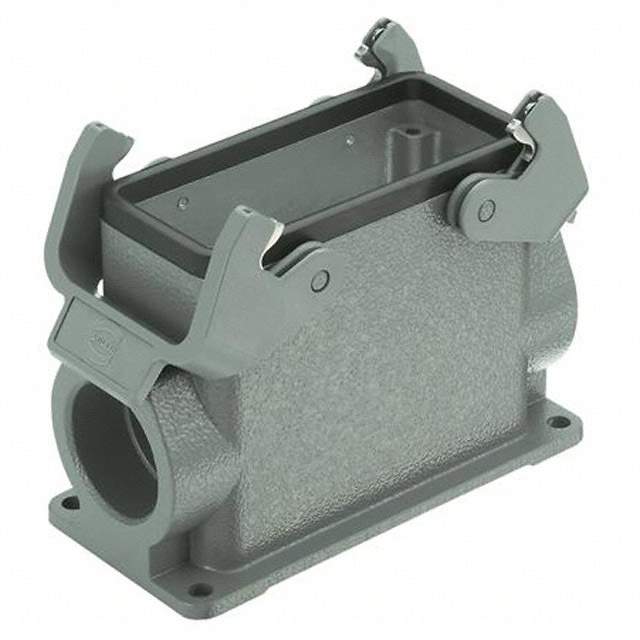

19300160232 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Housings, Hoods, Bases
Mfr HARTING
Series Han® B
Package Bulk
Product Status Active
Connector Type Base - Box Mount
Style Side Entry
Size 16B
Lock Location Locking Clip (2) on Base Bottom
Thread Size M32
Size / Dimension 4.606" L x 2.244" W x 3.181" H (117.00mm x 57.00mm x 80.80mm)
Housing Color Gray
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 19300160
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 905642-19300160232
Ultra Librarian 3D Model Ultra Librarian 19300160232 CAD Model

Description

The 905642-19300160232 is a Han® B Heavy Duty Connector Base from HARTING. It is a side entry base with a size of 16B.

  • Series: Han® B
  • Type: Heavy Duty Connector Base
  • Entry: Side
  • Size: 16B
  • Housing Material: Aluminum Die-Cast
  • Finish: Gray Powder-Coated
  • IP Rating: IP65
  • Thread Size: M32
  • Temperature Range: -40°C to 125°C
  • Package: Bulk
  • Quantity per Package: 1 piece
  • Product Status: Active
  • Mounting: Box Mount
  • Features: Locking Clips on Base Bottom
