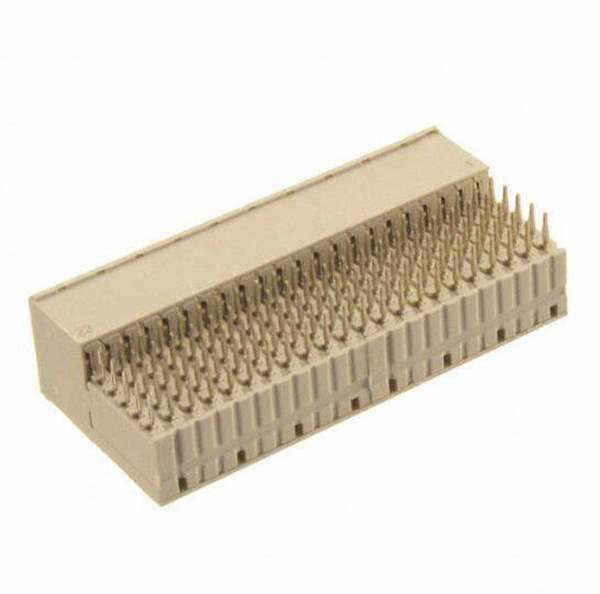

17241102101HARTING
Same model may have multiple batches, images only for reference.

17241102101

Part No 17241102101
Manufacturer HARTING
Catalog Rectangular Connectors
Description CONN RECEPT 110POS 2MM PRESS-FIT
Datasheet
17241102101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer HARTING
Category Connectors, Interconnects Backplane Connectors Hard Metric, Standard
Series har-bus® HM
Package Tube
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 110
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Win Source Part Number WS1206365-17241102101
Ultra Librarian 3D Model Ultra Librarian 17241102101 CAD Model

Description

110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
