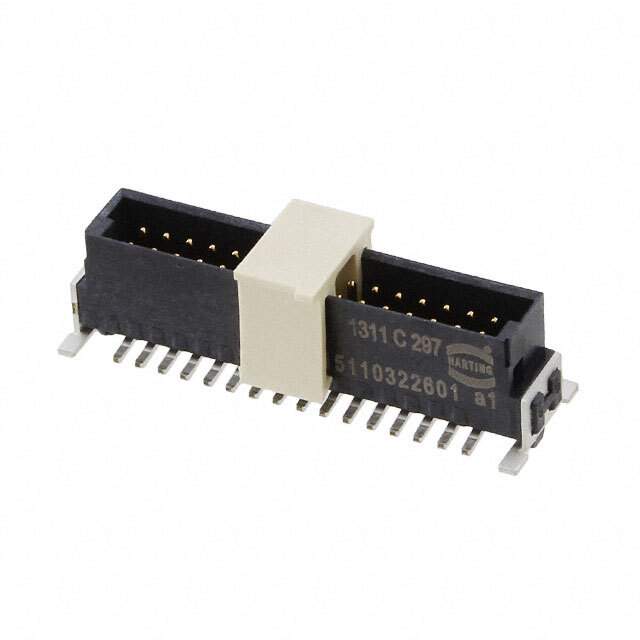

15110322601000 Real Image1 15110322601000 Real Image2
Same model may have multiple batches, images only for reference.
15110322601000 Real Image1 15110322601000 Real Image2
15110322601000 Real Image1 15110322601000 Real Image2
Same model may have multiple batches, images only for reference.

15110322601000

Part No 15110322601000
Manufacturer HARTING
Catalog Rectangular Connectors
Description CONN HEADER SMD 32POS 1.27MM / Connector Header Surface Mount 32 position 0.050" (1.27mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr HARTING
Series har-flex®
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 32
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide, Pick and Place, Solder Retention
Temperature Range - Operating -55°C ~ 125°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 280 pcs
Win Source Part Number 1380529-15110322601000
Ultra Librarian 3D Model Ultra Librarian 15110322601000 CAD Model

Description

The har-flex® Male Pin Header is a versatile connector designed for various applications, manufactured by HARTING.

  • Number of Positions: 32
  • Row Configuration: Dual-Row
  • Features: Board Guide, Pick and Place, Solder Retention
  • Contact Material: Copper Alloy
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Pitch: 0.050" (1.27mm)
  • Mounting Type: Surface Mount
  • Shrouded: 4 Walls
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
  • Moisture Sensitivity Level: 1 (unlimited)
