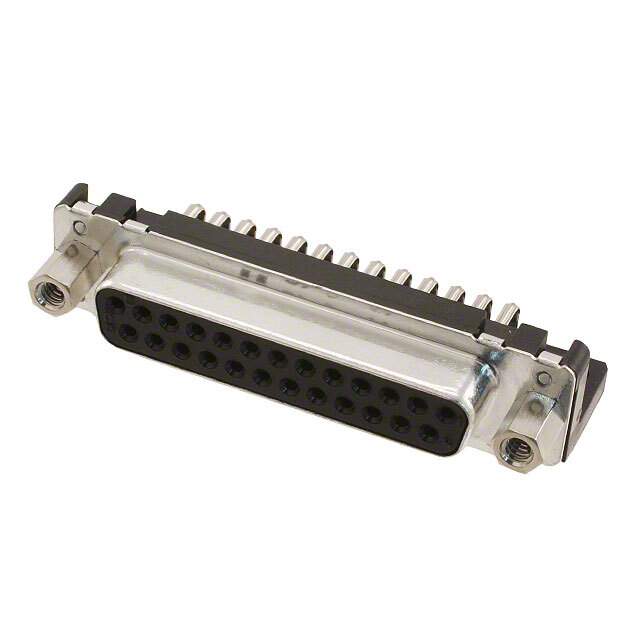

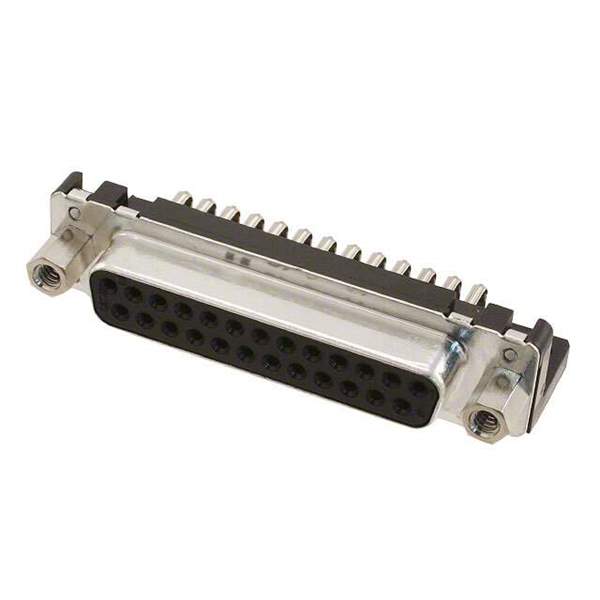

09663527613 Real Image1 09663527613 Real Image2
Same model may have multiple batches, images only for reference.
09663527613 Real Image1 09663527613 Real Image2
09663527613 Real Image1 09663527613 Real Image2
Same model may have multiple batches, images only for reference.

09663527613

Part No 09663527613
Manufacturer HARTING
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 25POS R/A SLDR / 25 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
09663527613 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Mfr HARTING
Series -
Package Bulk
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel
Contact Finish -
Contact Finish Thickness -
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6.5A
Backset Spacing 0.409" (10.40mm)
Features Board Lock
Voltage Rating -
Color -
Contact Form Stamped
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Wire Gauge -
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 100 pcs
Win Source Part Number 1381257-09663527613
Ultra Librarian 3D Model Ultra Librarian 09663527613 CAD Model

Description

The D-Sub Connector Assembly is a receptacle with female sockets designed for signal transmission.

  • Positions: 25
  • Rows: 2
  • Termination: Solder
  • Contact Form: Stamped
  • Contact Material: Copper Alloy
  • Shell Material: Steel
  • Flange: Mating Side with Female Screwlock (4-40)
  • Dielectric Material: Polybutylene Terephthalate (PBT) and Polyester, Glass Filled
  • Temperature Range: -55°C to 125°C
  • Current Rating: 6.5A
  • Flammability Rating: UL94 V-0
  • Package: Bulk
  • Package Quantity: 100 pieces
  • REACH: Unaffected
  • ECCN: EAR99
  • Win Source Part Number: 1381257-09663527613
