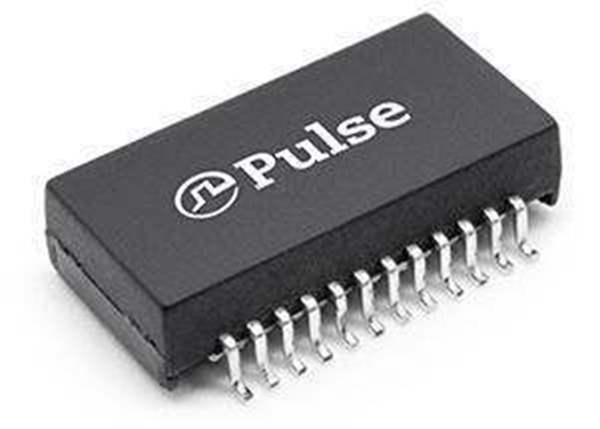

The Pulse H5143NLT is a surface mount transformer designed for various applications, particularly in the realm of signal and power isolation. Manufactured by Pulse Electronics, this transformer offers a compact solution with reliable performance characteristics. It is often used in networking, telecommunications, and industrial control systems where galvanic isolation and efficient power transfer are crucial.

Applications

• Isolated DC-DC Converters
• Networking Interfaces (e.g., Ethernet)
• Telecommunications Equipment
• Industrial Control Systems
• Gate Drive Circuits

Features

• Surface Mount Technology (SMT) for automated assembly.
• Compact Size for space-constrained applications.
• High Isolation Voltage to ensure safety and prevent ground loops.
• Optimized for specific frequency ranges.
• RoHS Compliant, adhering to environmental standards.

Benefits

• Simplified PCB assembly due to SMT design.
• Reduced board space requirements.
• Enhanced safety through high isolation.
• Efficient power transfer.
• Compliance with environmental regulations.

The H5143NLT transformer provides galvanic isolation, which is essential in applications where electrical safety and noise reduction are important. The surface mount design facilitates efficient manufacturing processes. Common specifications will include inductance, turns ratio, isolation voltage, operating frequency range, and DC resistance. The part is commonly used in applications where Ethernet communication is required. Due to its compact size and robust performance, the H5143NLT is suitable for a wide range of industrial and commercial applications.
