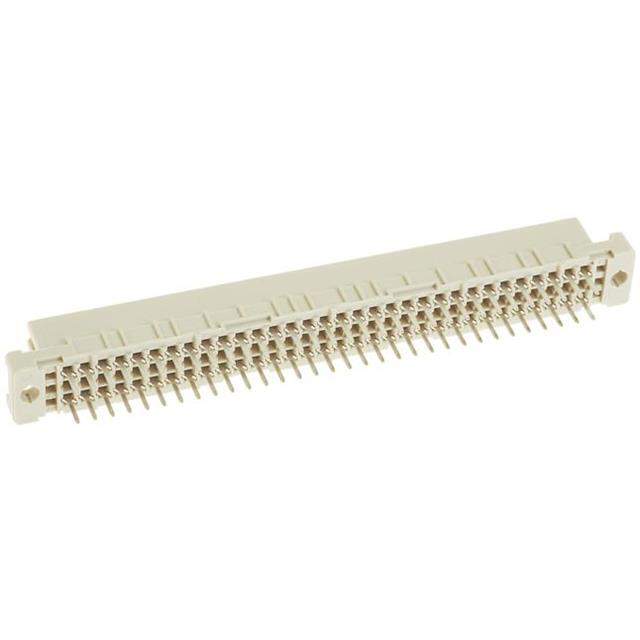

09032646824 Real Image
Same model may have multiple batches, images only for reference.

09032646824

Part No 09032646824
Manufacturer HARTING
Catalog Backplane Connectors
Description CONN DIN RCPT 96POS PCB / 96 Position Din Connector Receptacle, Female Sockets Through Hole
Datasheet
09032646824 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr HARTING
Series DIN 41612
Package Bulk
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 96
Number of Positions Loaded 64
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C
Level, Class 2
Mounting Type Through Hole
Termination Solder
Material Flammability Rating UL94 V-0
Material - Insulation Thermoplastic, Glass Filled
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 904764-09032646824
Ultra Librarian 3D Model Ultra Librarian 09032646824 CAD Model

Description

The 904764-09032646824 is a DIN 41612 Backplane Connector from HARTING. It is a receptacle connector with female sockets and has a total of 96 positions.

  • Pitch: 0.100" (2.54mm)
  • Mounting: through-hole mounting
  • Operating: temperature range
  • Insulation Material: thermoplastic, glass filled
  • Material Flammability Rating: UL94 V-0
  • Series: DIN 41612 series
  • Rows: 3
  • Termination: solder
  • Standard Package: 100 pcs
