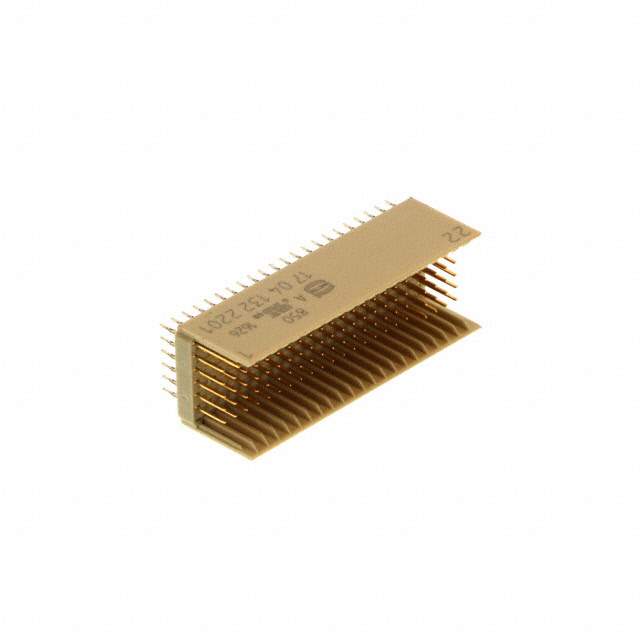

17041322201 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Hard Metric, Standard
Mfr HARTING
Series har-bus® HM
Package Tube
Product Status Active
Connector Type Header, Male Pins
Connector Style B 22
Number of Positions 132 (110 + 22 Ground)
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5 + 1
Mounting Type Through Hole
Termination Press-Fit
Contact Finish Gold or Gold-Palladium
Contact Finish Thickness Flash
Current Rating (Amps) 1 A
Temperature Range - Operating -55°C ~ 125°C
Standard Package 11 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1226913-17041322201
Ultra Librarian 3D Model Ultra Librarian 17041322201 CAD Model

Description

The har-bus® HM is a hard metric, standard backplane connector series designed for high-performance applications. The 1226913-17041322201 is a header connector with 132 positions, including 110 signal contacts and 22 ground contacts.

  • Positions: 132 (110 signal, 22 ground)
  • Pitch: 0.079" (2.00mm)
  • Termination: press-fit
  • Contact Finish: gold or gold-palladium
  • Operating Temperature: -55°C to 125°C
  • Compliance: ECCN and REACH regulations
