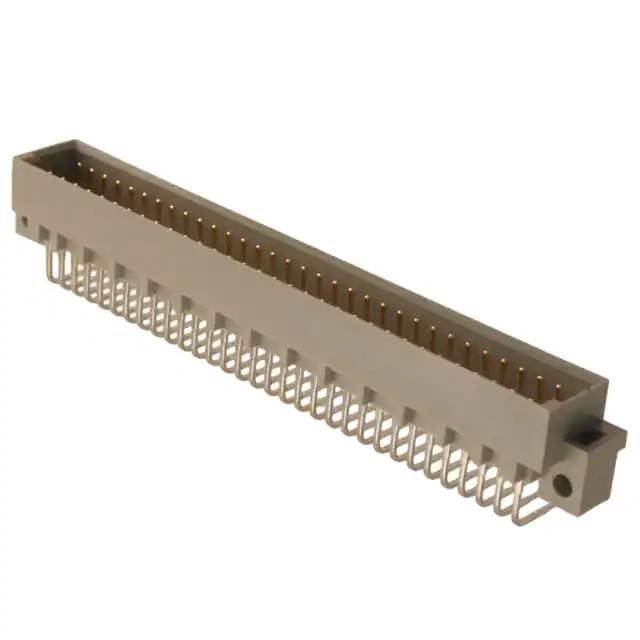

09031647921 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr HARTING
Series DIN 41612
Package Bulk
Product Status Active
Connector Type Header, Male Pins
Number of Positions 96
Number of Positions Loaded 64
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C
Level, Class 3
Mounting Type Through Hole, Right Angle
Termination Solder
Material Flammability Rating UL94 V-0
Material - Insulation Thermoplastic, Glass Filled
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 858576-09031647921
Ultra Librarian 3D Model Ultra Librarian 09031647921 CAD Model

Description

The 858576-09031647921 is a DIN 41612 backplane connector from the DIN 41612 series.

  • Positions: 96
  • Pitch: 0.100" (2.54mm)
  • Pin Header: Male, 3 Rows
  • Loaded Positions: 64
  • Termination: Solder
  • Insulation Material: Thermoplastic, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Mounting: Through Hole
  • Temperature Range: Not Specified
  • Packaging: Bulk
  • Status: Active
