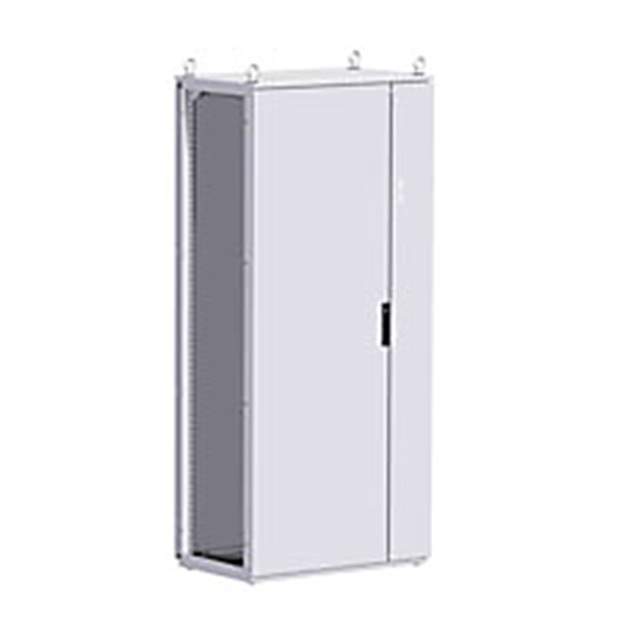

HME1688 Real Image
Same model may have multiple batches, images only for reference.

HME1688

Part No HME1688
Manufacturer Hammond Manufacturing
Catalog Racks
Description MODULAR SINGLE DOOR ENCL / Type 12 Mild Steel Modular Freestanding Enclosure
Datasheet
HME1688 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Boxes, Enclosures, Racks
Manufacturer Hammond Manufacturing
Series HME
Dimensions - Panel 24.606" L x 28.189" W x 59.291" H (625.00mm x 716.00mm x 1506.00mm)
Dimensions - Overall 31.496" L x 31.496" W x 62.992" H (800.00mm x 800.00mm x 1600.00mm)
Material Metal, Steel
Features Front and Rear Access, Removable Door
Style Enclosed, Bottom, Top
Type Equipment Cabinet
Door Steel
Color Gray
Mounting Rails Two Pair
Shipping Info Drop shipped from the Manufacturer's Warehouse
Win Source Part Number 796028-HME1688
Popularity Medium
Supply and Demand Status Limited
Family Name HME16
Introduction Date July 20, 2010
ECCN EAR99
Country of Origin Canada
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian HME1688 CAD Model

Description

The Hammond Manufacturing HME1688 equipment cabinet is a high-quality enclosure designed for use in a variety of applications.

  • Features: Front and Rear Access, Removable Door
  • Material: Steel
  • Mounting: Enclosed, Bottom, Top
  • Mounting Rails: Two Pairs
  • Dimensions: 31.496" L x 31.496" W x 62.992" H (800.00mm x 800.00mm x 1600.00mm)
  • Series: HME
