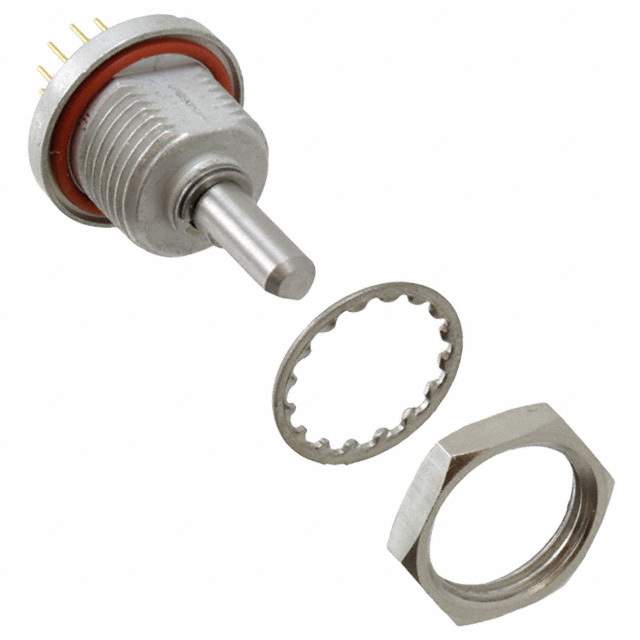

77SP36-01-1-04N Real Image
Same model may have multiple batches, images only for reference.

77SP36-01-1-04N

Part No 77SP36-01-1-04N
Manufacturer Grayhill Inc.
Catalog Rotary Switches
Description SWITCH ROTARY 4POS 50MA 115V / Rotary Switch 4 Position SP4T 50mA (AC), 200mA (DC) 115 VAC Panel Mount, Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Rotary Switches
Mfr Grayhill Inc.
Series 77
Package Bulk
Number of Positions 4
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP4T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 50mA (AC) , 200mA (DC)
Voltage Rating - AC 115 V
Voltage Rating - DC 28 V
Actuator Type Flatted (3.17mm Dia)
Actuator Length 7.98mm
Angle of Throw 36°
Contact Material Silver Cadmium Oxide (AgCdO)
Contact Finish Gold
Mounting Type Panel Mount, Through Hole
Termination Style PC Pin
Features Shaft and Panel Sealed
Depth Behind Panel 4.57mm
Panel Cutout Dimensions Circular - 9.53mm Dia
Base Product Number 77SP36
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Win Source Part Number 1350061-77SP36-01-1-04N
Ultra Librarian 3D Model Ultra Librarian 77SP36-01-1-04N CAD Model

Description

The Grayhill Inc. 77 series rotary switch is a PC pin termination style switch that features shaft and panel sealing.

  • Contact Finish: gold
  • Contact Material: silver cadmium oxide (AgCdO)
  • Voltage Rating: 115V AC and 28V DC
  • Current Rating: 50mA (AC) and 200mA (DC)
  • Contact Timing: non-shorting (BBM)
  • Actuator Type: flatted (3.17mm Dia)
  • Angle of Throw: 36 degrees
  • Depth Behind Panel: 4.57mm
  • Mounting Type: panel mount and through-hole
  • Panel Cutout: circular-9.53mm Dia
  • Stop: fixed index
  • Deck: single deck
  • Circuit Per Deck: SP4T
