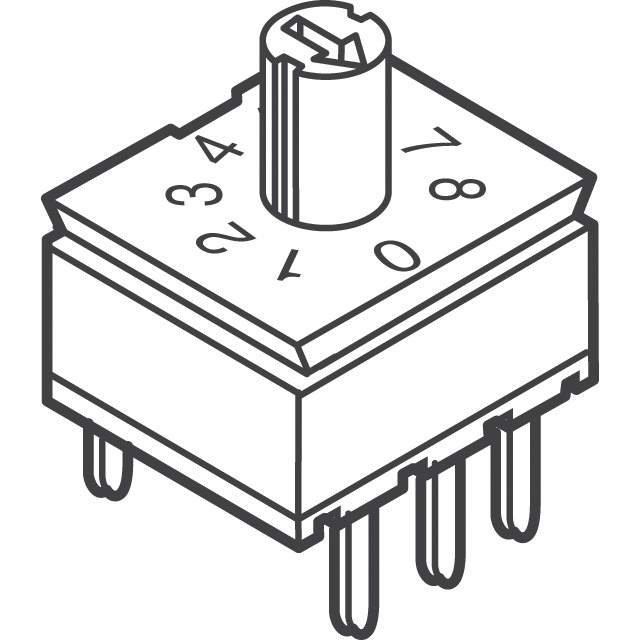

94HBB16 Real Image
Same model may have multiple batches, images only for reference.

94HBB16

Part No 94HBB16
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH ROTARY DIP HEX 100MA 50V
Datasheet
94HBB16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Grayhill Inc.
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit Hexadecimal
Number of Positions 16
Current Rating 100mA
Voltage Rating 50VDC
Actuator Type Rotary with Shaft
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.495" (12.57mm)
Mounting Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Sealed
Body Material Plastic
Length 0.390" (9.91mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 10,000 Cycles
Win Source Part Number 1040953-94HBB16
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 94HBB16 CAD Model

Description

The Grayhill Inc. Rotary Switch is a high-quality electronic component that offers exceptional performance and reliability. Grayhill Inc. Rotary Switch is a product by Grayhill Inc..

  • Positions: 16
  • Pitch: 0.100" (2.54mm)
  • Termination Style: PC pin
  • Sealed: Yes
  • Contact Finish: gold
  • Voltage Rating: 50VDC
  • Current Rating: 100mA
  • Height Above Board: 0.495" (12.57mm)
  • Length: 0.390" (9.91mm)
  • Mounting: through hole
  • Body: plastic
  • Circuit: hexadecimal
  • Actuator Type: rotary with shaft
  • Electrical Life: -
  • Mechanical Life: 10,000 cycles
  • Actuator Level: raised
  • Washable: Yes
  • Status: obsolete (EOL)
  • Temperature Range: -40°C to 85°C
