Same model may have multiple batches, images only for reference.

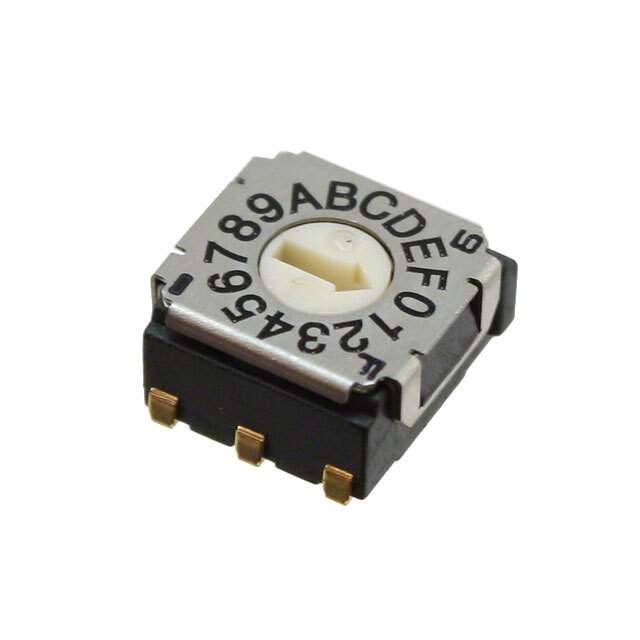

SH-7070TA Real Image
Same model may have multiple batches, images only for reference.

SH-7070TA

Part No SH-7070TA
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SW ROTARY DIP HEX COMP 100MA 5V
Datasheet
SH-7070TA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit Hexadecimal Complement
Number of Positions 16
Current Rating 100mA
Voltage Rating 5VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.148" (3.75mm)
Mounting SMD (SMT)
Termination Style J Lead
Pitch 0.100" (2.54mm), Full
Washable Yes
Body Material Polyphenylene Sulfide (PPS)
Length 0.287" (7.30mm)
Temperature Range - Operating -40°C to 85°C
Electrical Life 10,000 Steps
Win Source Part Number 1095640-SH-7070TA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SH-7070TA CAD Model

Description

The Copal Electronics Inc. switch with part number 1095640-SH-7070TA is a hexadecimal complement circuit rotary switch.

  • Manufacturer: Copal Electronics Inc.
  • Part Number: 1095640-SH-7070TA
  • Circuit: Hexadecimal Complement
  • Packaging: Reel - TR
  • Positions: 16
  • Pitch: 0.100 inches (2.54mm)
  • Termination Style: J Lead
  • Contact Finish: Gold
  • Voltage Rating: 5VDC
  • Current Rating: 100mA
  • Height Above Board: 0.148 inches (3.75mm)
  • Length: 0.287 inches (7.30mm)
  • Mounting: SMD or SMT
  • Body Material: Polyphenylene Sulfide (PPS)
  • Actuator Type: Rotary for Tool
  • Electrical Life: 10,000 steps
  • Actuator Level: Flush or Recessed
  • Washable: Yes
  • Temperature Range: -40°C to 85°C
  • Supply and Demand: Balanced
