Same model may have multiple batches, images only for reference.

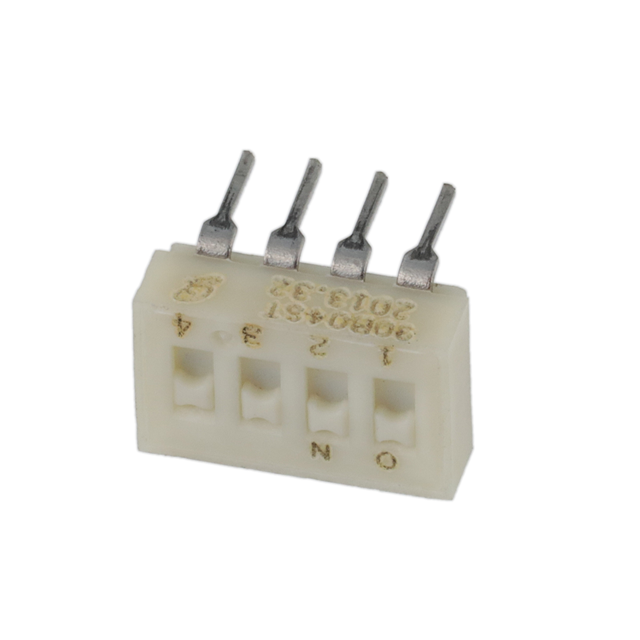

90B04ST Real Image
Same model may have multiple batches, images only for reference.

90B04ST

Part No 90B04ST
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 4 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Grayhill Inc.
Series 90B
Package Tube
Circuit SPST
Number of Positions 4
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.195" (4.95mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Thermoplastic
Length 0.470" (11.94mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number 90B04
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 2266-90B04ST,GH7220
Standard Package 37
Win Source Part Number 1023908-90B04ST
Ultra Librarian 3D Model Ultra Librarian 90B04ST CAD Model

Description

Grayhill Inc. 90B04ST is a DIP switch with four positions and a pitch of 0.100 inches.

  • Positions: Four
  • Pitch: 0.100 inches
  • Termination Style: PC Pin
  • Seal Feature: Tape Seal
  • Voltage Rating: 24VDC
  • Contact Finish: Gold
  • Packaging: Tube
  • Standard Package: 37
  • Height Above Board: 0.195 inches
  • Length: 0.470 inches
  • Circuit: SPST
  • Actuator Type: Slide (Standard)
  • Washable: Yes
  • Temperature Range: -40°C to 85°C
