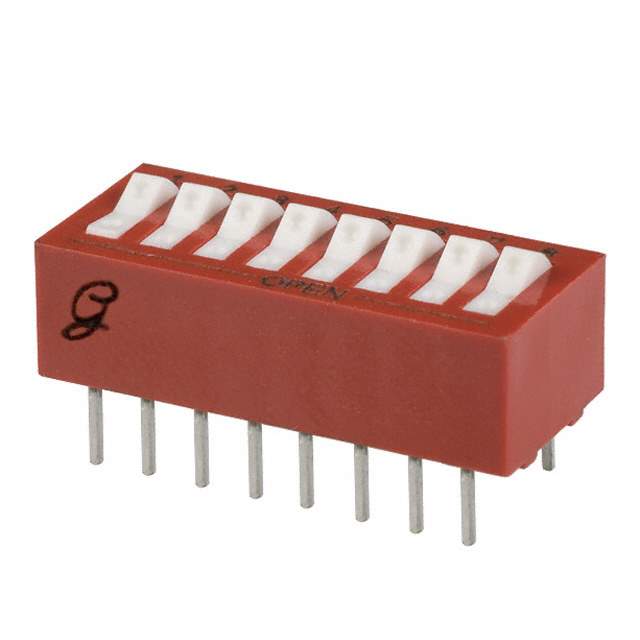

76SB08ST

Part No 76SB08ST
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH ROCKER DIP SPST 150MA 30V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Grayhill Inc.
Packaging Tube/Rail
Status Active
Circuit SPST
Number of Positions 8
Current Rating 150mA
Voltage Rating 30VDC
Actuator Type Rocker
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.315" (8.00mm)
Mounting Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Body Material Thermoplastic
Length 0.880" (22.35mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Win Source Part Number 198294-76SB08ST
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 76SB08ST CAD Model

Description

76SB08ST Product Description

Exceptional in its class, the 76SB08ST offers a blend of innovation and practicality, making it an ideal component for various electronic endeavors.

  • Renewable Energy Systems
  • Industrial Equipment
  • Medical Devices
  • Telecommunication Networks

Features and Benefits:

  • High Precision: Ensures accurate performance in critical applications.
  • Enhanced Protection: Features safeguards against overvoltage and overheating.
  • Flexible Deployment: Suitable for a diverse array of environments.
  • Eco-Friendly: Adheres to environmental standards for sustainable use.

Additional Details: The 76SB08ST is manufactured with meticulous attention to detail, offering a product that is not only high in quality but also reliable for continuous use in rigorous settings.
