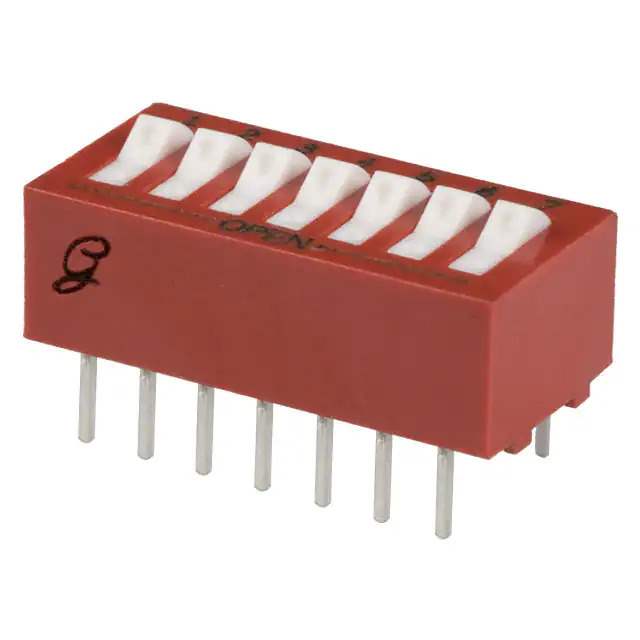

76SB07S Real Image
Same model may have multiple batches, images only for reference.

76SB07S

Part No 76SB07S
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH ROCKER DIP SPST 150MA 30V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Grayhill Inc.
Series 76
Package Bag
Product Status Obsolete
Circuit SPST
Number of Positions 7
Current Rating (Amps) 150mA
Voltage Rating 30VDC
Actuator Type Rocker
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.315" (8.00mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Thermoplastic
Length 0.780" (19.81mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Standard Package 104 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 858200-76SB07S
Ultra Librarian 3D Model Ultra Librarian 76SB07S CAD Model

Description

The 76SB07S is a 7-position DIP Switch from Grayhill Inc.

  • Positions: 7
  • Pitch: 0.100" (2.54mm)
  • Termination Style: PC Pin
  • Contact Finish: Gold-Plated
  • Voltage Rating: 30VDC
  • Height Above the Board: 0.315" (8.00mm)
  • Length: 0.780" (19.81mm)
  • Standard Package: 104 pcs
  • Washable: Yes
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 85°C
  • Circuit: SPST
  • Actuator Level: Raised
