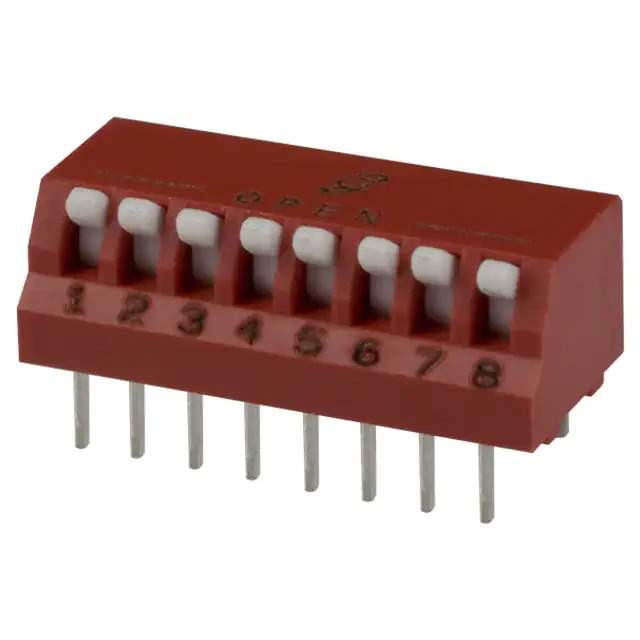

76PSB08S Real Image
Same model may have multiple batches, images only for reference.

76PSB08S

Part No 76PSB08S
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 150MA 30V / Dip Switch SPST 8 Position Through Hole, Right Angle Piano Actuator 150mA 30VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Grayhill Inc.
Series 76
Package Bag
Product Status Obsolete
Circuit SPST
Number of Positions 8
Current Rating (Amps) 150mA
Voltage Rating 30VDC
Actuator Type Piano
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.301" (7.65mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Thermoplastic
Length 0.880" (22.35mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Standard Package 108 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 858199-76PSB08S
Ultra Librarian 3D Model Ultra Librarian 76PSB08S CAD Model

Description

The 858199-76PSB08S is an 8-position DIP switch from the 76 series manufactured by Grayhill Inc.

  • Positions: 8
  • Series: 76
  • Pitch: 0.100" (2.54mm)
  • Termination Style: PC Pin
  • Seal: Tape Seal
  • Contact Finish: Gold
  • Packaging: Bag
  • Standard Package: 108 pieces
  • Contact Material: Copper Alloy
  • Voltage Rating: 30VDC
  • Height Above Board: 0.301" (7.65mm)
  • Length: 0.880" (22.35mm)
  • Circuit: SPST
  • Actuator Type: Piano
  • Electrical and Mechanical Life: 2,000 cycles
  • Washable: Yes
  • Mounting Type: Through Hole, Right Angle
  • Operating Temperature: -40°C to 85°C
  • Current Rating: 150mA
  • REACH: Unaffected
  • HTSUS Code: 8536.50.9065
  • Base Product Number: 76
  • Status: Obsolete
