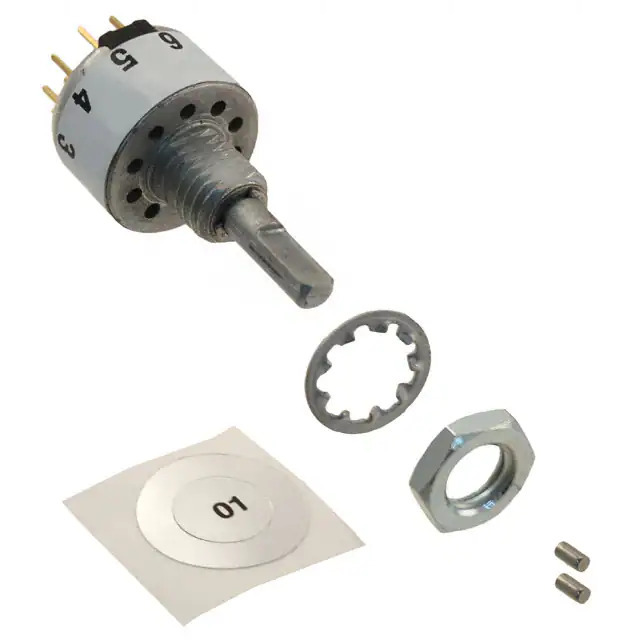

56DP36-01-2-AJN Grayhill Inc.
Same model may have multiple batches, images only for reference.

56DP36-01-2-AJN

Part No 56DP36-01-2-AJN
Manufacturer Grayhill Inc.
Catalog Rotary Switches
Description SWITCH ROTARY 2-5POS 200MA 115V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Rotary Switches
Mfr Grayhill Inc.
Series 56
Package Bulk
Product Status Active
Number of Positions 2 ~ 5
Index Stops Adjustable
Number of Decks 1
Number of Poles per Deck 2
Circuit per Deck DP5T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 200mA (AC/DC)
Voltage Rating - AC 115 V
Voltage Rating - DC 30 V
Actuator Type Flatted (3.17mm Dia)
Actuator Length 9.53mm
Angle of Throw 36°
Contact Material Brass
Contact Finish Silver
Mounting Type Panel Mount, Through Hole
Termination Style PC Pin
Features -
Depth Behind Panel 9.58mm
Panel Cutout Dimensions -
Base Product Number 56DP36
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Win Source Part Number 1376128-56DP36-01-2-AJN
Ultra Librarian 3D Model Ultra Librarian 56DP36-01-2-AJN CAD Model

Description

The 56DP36-01-2-AJN is a rotary switch from Grayhill Inc.

  • Current Rating: 200mA (AC/DC)
  • Voltage Rating: 115V (AC) and 30V (DC)
  • Actuator: Flatted, 3.17mm diameter
  • Mounting Type: Panel Mount and Through-Hole
  • Number of Positions: 2 to 5
  • Contact Finish: Silver
  • Contact Material: Brass
  • Contact Timing: Non-Shorting (BBM)
  • Index Stops: Adjustable
  • Decks: Single
  • Poles per Deck: 2
  • Circuit per Deck: DP5T
  • Angle of Throw: 36°
  • Depth Behind Panel: 9.58mm
