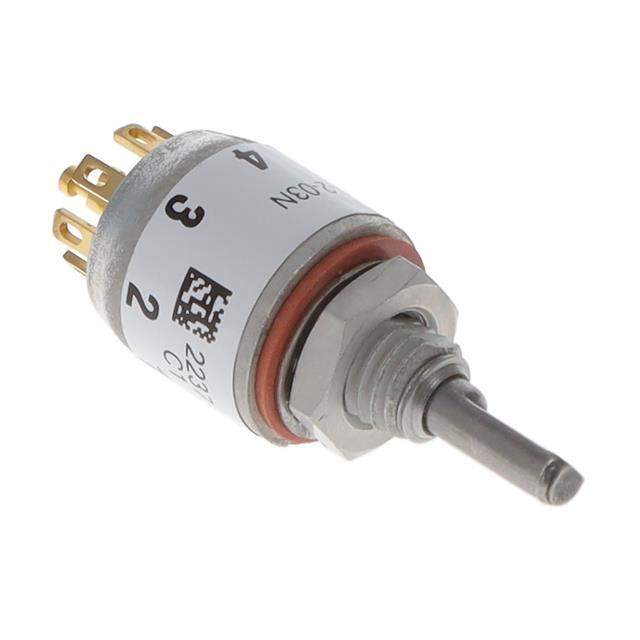

50S45-01-2-03N Real Image
Same model may have multiple batches, images only for reference.

50S45-01-2-03N

Part No 50S45-01-2-03N
Manufacturer Grayhill Inc.
Catalog Rotary Switches
Description SWITCH ROTARY 3POS 150MA 115V / Rotary Switch 3 Position DP3T 150mA (AC), 200mA (DC) 115 VAC Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rotary Switches
Mfr Grayhill Inc.
Series 50
Package Bulk
Number of Positions 3
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 2
Circuit per Deck DP3T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 150mA (AC), 200mA (DC)
Voltage Rating - AC 115 V
Voltage Rating - DC 28 V
Actuator Type Flatted (3.17mm Dia)
Actuator Length 9.53mm
Angle of Throw 45°
Contact Finish Gold
Mounting Type Panel Mount
Termination Style Solder Lug
Features Shaft and Panel Sealed
Depth Behind Panel 18.77mm
Panel Cutout Dimensions Circular - 6.45mm Dia
Base Product Number 50S45
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9025
Other Names 50S4501203N,2266-50S45-01-2-03N
Standard Package 1
Win Source Part Number 1152213-50S45-01-2-03N
Ultra Librarian 3D Model Ultra Librarian 50S45-01-2-03N CAD Model

Description

The 50S45-01-2-03N is a rotary switch manufactured by Grayhill Inc.

  • Number of Positions: 3
  • Contact Timing: Non-Shorting (BBM)
  • Termination Style: Solder Lug
  • Contact Finish: Gold
  • Voltage Rating: 115V AC, 28V DC
  • Package: Bulk
  • Panel Cutout Dimensions: Circular - 6.45mm Dia
  • Actuator Type: Flatted (3.17mm Dia)
  • Index Stop: Fixed
  • Circuit Per Deck: DP3T
  • Angle of Throw: 45°
  • Current Rating: 150mA (AC), 200mA (DC)
