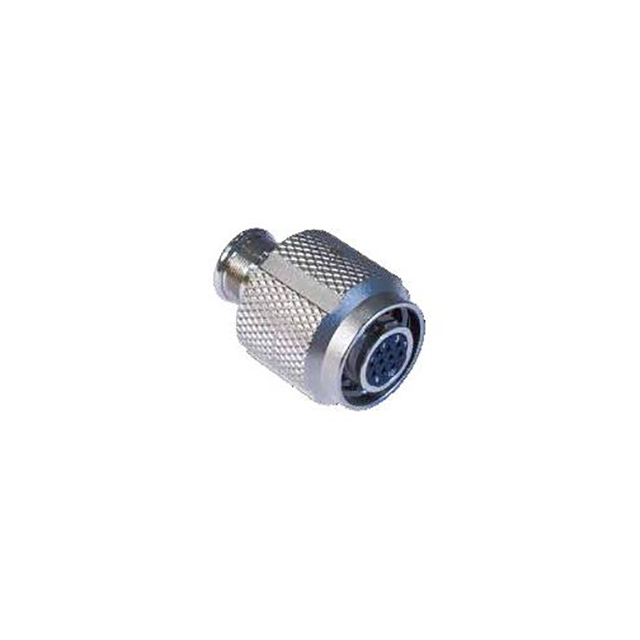

Same model may have multiple batches, images only for reference.
804-001-06ZNU14-55SA Glenair, Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

804-001-06ZNU14-55SA

Part No 804-001-06ZNU14-55SA
Manufacturer Glenair, Inc.
Catalog Circular Connectors - Assemblies
Description CIRCULAR MIL SPEC CONNECTOR 55P
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Plug, Female Sockets
Number of Positions 55
Shell Size - Insert 14-55
Mounting Type Free Hanging (In-Line)
Termination Crimp
Fastening Type Push-Pull
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum
Shell Finish Black Zinc Nickel
Contact Finish - Mating Gold
Color Black
Ingress Protection Environment Sealed
Shielding Shielded
Current Rating (Amps) 5A
Temperature Range - Operating -65°C ~ 175°C
Package Bag
Supply and Demand Status Shortage
Win Source Part Number 1615905-804-001-06ZNU14-55SA
Ultra Librarian 3D Model Ultra Librarian 804-001-06ZNU14-55SA CAD Model

Description

N
