Same model may have multiple batches, images only for reference.

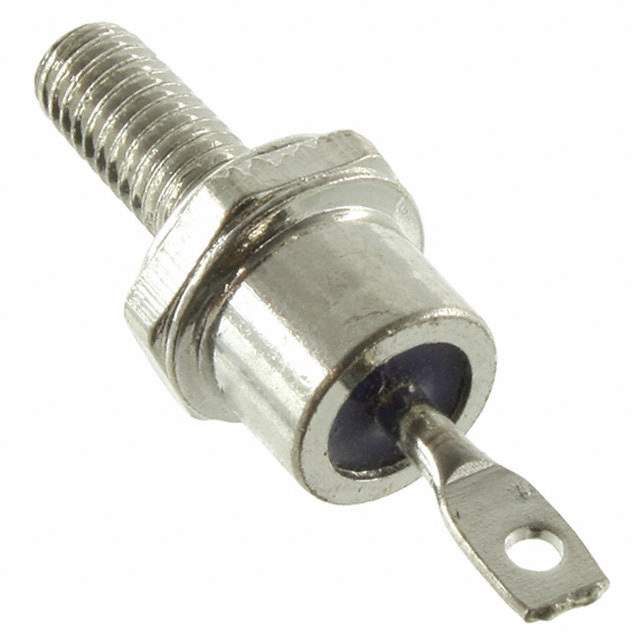

SD4145 Real Image
Same model may have multiple batches, images only for reference.

SD4145

Part No SD4145
Manufacturer GeneSiC Semiconductor
Catalog Diodes, Rectifiers - Single
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr GeneSiC Semiconductor
Package Bulk
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Max) @ If 680 mV @ 30 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1.5 mA @ 35 V
Mounting Type Chassis, Stud Mount
Package / Case DO-203AA, DO-4, Stud
Supplier Device Package DO-4
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 250
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282572-SD4145
Ultra Librarian 3D Model Ultra Librarian SD4145 CAD Model

Description

The SD4145 from GeneSiC Semiconductor is a Schottky diode with a maximum DC reverse voltage of 45 V and an average rectified current of 30 A.

  • Voltage - DC Reverse (Vr) (Max): 45 V
  • Current - Average Rectified (Io): 30 A
  • Voltage - Forward (Vf) (Max) @ If: 680 mV @ 30 A
  • Current - Reverse Leakage @ Vr: 1.5 mA @ 35 V
  • Application: Rectifier circuits and other applications where fast switching is required
  • Package / Case: DO-203AA, DO-4, Stud
  • Operating Temperature: -55°C to 150°C
