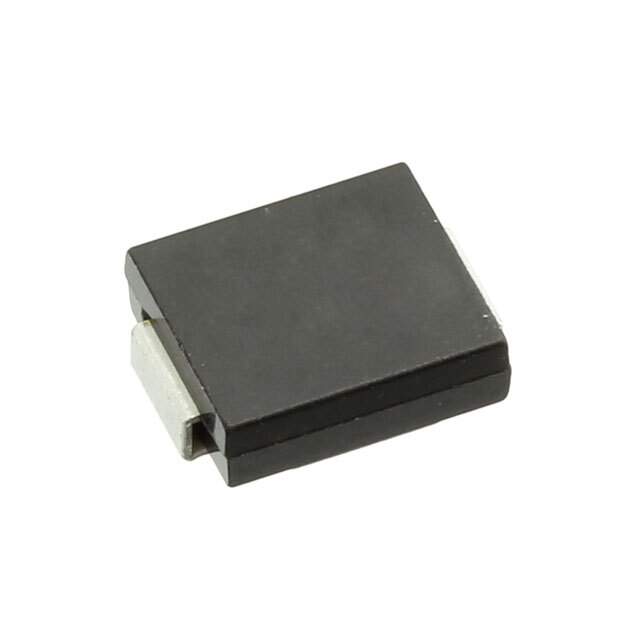

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Comchip Technology
Packaging Reel - TR
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Capacitance @ Vr, F 380pF @ 4V, 1MHz
Mounting Surface Mount
Case / Package DO-214AB, SMC
Supplier Device Package DO-214AB (SMC)
Operating Temperature - Junction -50°C ~ 150°C
Base Product Number CDBC540
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 641-1733-1,641-1733-2,641-1733-6
Standard Package 3,000
Win Source Part Number 1324238-CDBC540-HF
Ultra Librarian 3D Model Ultra Librarian CDBC540-HF CAD Model

Description

The Comchip Technology CDBC540-HF is a fast recovery Schottky diode that is ideal for use in a wide range of electronic applications.

  • Voltage Rating: 40V
  • Average Rectified Current: 5A
  • ROHS3 Compliant: true
  • Capacitance: 380pF @ 4V and 1MHz
  • Package: DO-214AB (SMC)
  • Reverse Leakage Current: 500μA @ 40V
