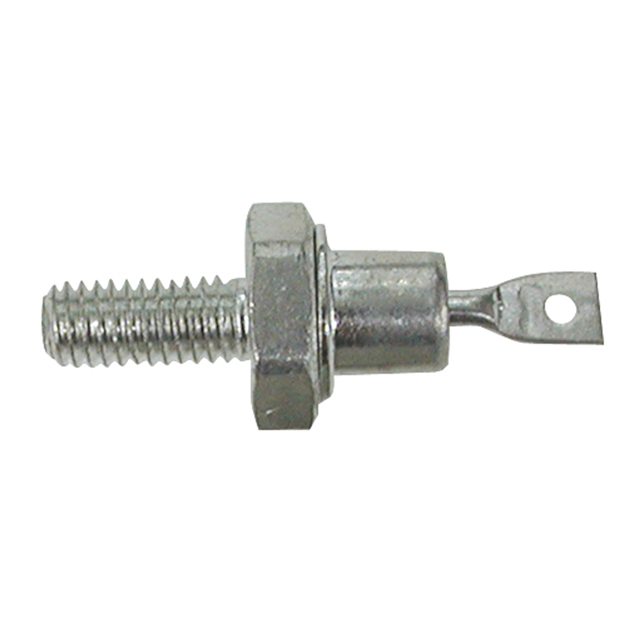

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Max) @ If 1V @ 25A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 75ns
Current - Reverse Leakage @ Vr 10μA @ 50V
Mounting Chassis, Stud Mount
Case / Package DO-4
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 140313-MUR2510
Popularity Medium
Supply and Demand Status Limited
Quantity per package 250
Ultra Librarian 3D Model Ultra Librarian MUR2510 CAD Model

Description

The GeneSiC Semiconductor MUR2510 is a standard diode that is designed to rectify current with an average rectified current of 25A.

  • Average Rectified Current: 25A
  • Maximum DC Reverse Voltage: 100V
  • Forward Voltage: 1V @ 25A
  • Reverse Recovery Time: 75ns
  • Current Leakage at Reverse Voltage: 10μA @ 50V
  • Speed: 200mA (Io)
  • Package: DO-4
  • Mounting: Chassis and stud mounting

This diode is ideal for various electronic applications.
