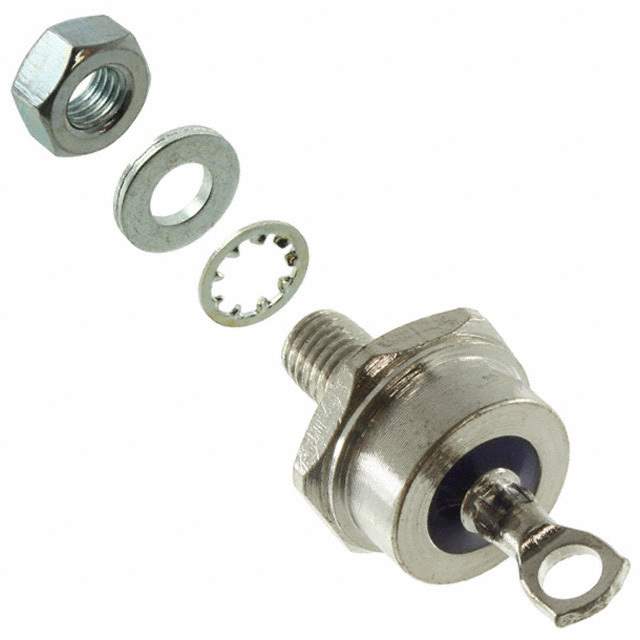

MBR8045 Real Image
Same model may have multiple batches, images only for reference.

MBR8045

Part No MBR8045
Manufacturer GeneSiC Semiconductor
Catalog Diodes, Rectifiers - Single
Description SCHOTTKY DIODES STUD TYPE 80 A | DIODE SCHOTTKY 45V 80A DO5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 45V
Current - Average Rectified (Io) 80A
Voltage - Forward (Vf) (Maximum) at If 650mV at 80A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 1mA at 45V
Mounting Style Chassis, Stud Mount
Manufacturer Package DO-203AB, DO-5, Stud
Supplier Device Package DO-5
Operating Temperature - Junction -55°C ~ 150°C
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1216181-MBR8045
Manufacturer Homepage www.transyselectronics.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MBR8045 CAD Model

Description

The GeneSiC Semiconductor MBR8045 is a Schottky diode designed for fast recovery with a current rating of 80A.

  • Reverse Voltage: 45V (maximum)
  • Forward Voltage: 650mV @ 80A
  • Mounting Type: Chassis or Stud
  • Package: DO-5 and DO-203AB
  • Reverse Leakage Current: 1mA @ 45V
  • Operating Temperature Range: -55°C to 150°C
  • Supply and demand status: Limited
  • Category: Discrete semiconductor products
