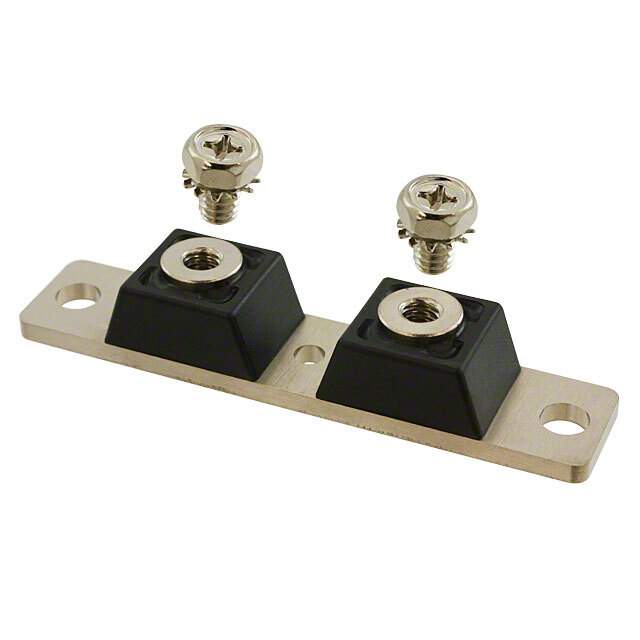

MBR400100CT Real Image
Same model may have multiple batches, images only for reference.

MBR400100CT

Part No MBR400100CT
Manufacturer GeneSiC Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description 400 Amp Rectifier 20 to 100 Volts Schottky Barrier | DIODE MODULE 100V 400A 2TOWER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) (per Diode) 400A (DC)
Voltage - Forward (Vf) (Maximum) at If 840mV at 200A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 5mA at 20V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package Twin Tower
Supplier Device Package Twin Tower
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1216134-MBR400100CT
Manufacturer Homepage www.mccsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MBR400100CT CAD Model

Description

The GeneSiC Semiconductor MBR400100CT is a Schottky diode with a voltage forward of 840mV at 200A and a current reverse leakage of 5mA at 20V.

  • Manufacturer: GeneSiC Semiconductor
  • Voltage Forward: 840mV @ 200A
  • Current Reverse Leakage: 5mA @ 20V
  • Peak Reverse Voltage: 100V
  • Average Rectified Current: 400A (DC)
  • Package: Twin Tower
  • Temperature Range: -55°C to 150°C
  • Recovery Speed: 200mA (Io)
  • Popularity: Medium
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 25
