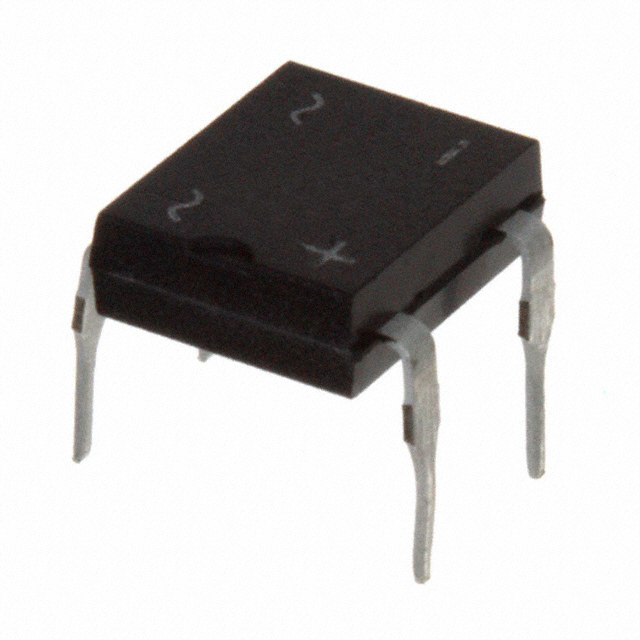

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 100V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 10μA @ 100V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package DB
Win Source Part Number 1032637-DB102G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian DB102G CAD Model

Description

The GeneSiC Semiconductor 1032637-DB102G is a single-phase standard diode with a current rating of 1A and a maximum forward voltage of 1.1V at 1A.

  • Diode Type: Standard
  • Number of Phases: Single-Phase
  • Current Rating: 1A
  • Forward Voltage (Max): 1.1V @ 1A
  • Peak Reverse Voltage: 100V
  • Reverse Leakage Current: 10μA @ 100V
  • Mounting: Through-Hole
  • Package: DB
  • Product Category: Discrete Semiconductor Products
  • Operating Temperature: -55°C to 150°C (TJ)
  • Market Status: Popular
  • Supply and Demand Status: Limited
  • Package Quantity: 2,500
