Same model may have multiple batches, images only for reference.

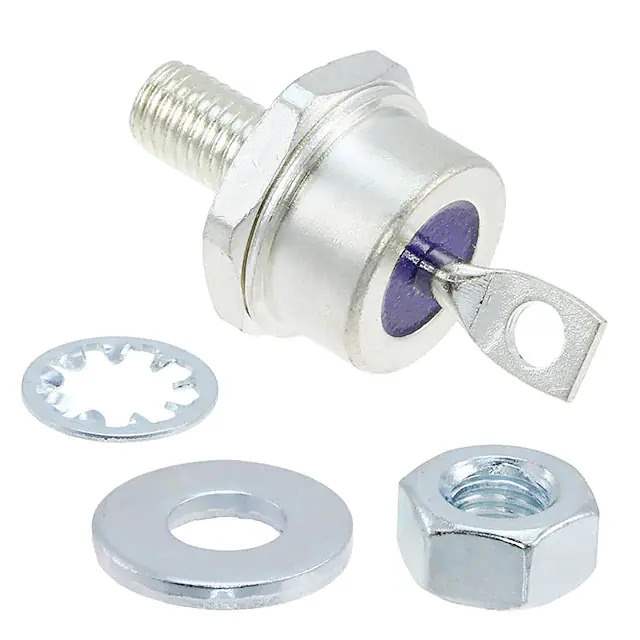

1N1190A Real Image
Same model may have multiple batches, images only for reference.

1N1190A

Part No 1N1190A
Manufacturer GeneSiC Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 40A DO5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr GeneSiC Semiconductor
Package Bulk
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 40A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 40 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 50 V
Mounting Type Chassis, Stud Mount
Package / Case DO-203AB, DO-5, Stud
Supplier Device Package DO-5
Operating Temperature - Junction -65°C ~ 190°C
Base Product Number 1N1190
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 538953-1N1190A
Ultra Librarian 3D Model Ultra Librarian 1N1190A CAD Model

Description

The 538953-1N1190A is a single diode rectifier from the standard recovery diode series. Bold the product name (e.g., 538953-1N1190A) and manufacturer (e.g., unspecified).

  • Series: Standard Recovery Diode
  • Maximum Reverse Voltage Rating: 600V
  • Average Rectified Current Rating: 40A
  • Forward Voltage Drop: 1.1V @ 40A
  • Package: Bulk
  • Standard Package Quantity: 100 pieces
  • Applications: Rectification of AC to DC power
  • Operating Temperature Range: -65°C to 190°C
  • Production Status: Active
