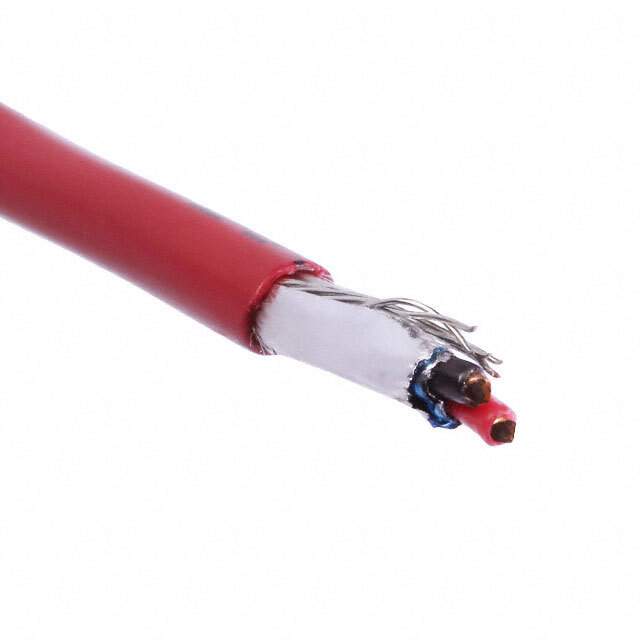

E3602S.18.03 Real Image
Same model may have multiple batches, images only for reference.

E3602S.18.03

Part No E3602S.18.03
Manufacturer General Cable/Carol Brand
Catalog Multiple Conductor Cables
Description CABLE 2COND 18AWG RED SHLD 500'
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cables, Wires
Manufacturer General Cable/Carol Brand
Cable Type Multi-Conductor
Number of Conductors 2
Wire Gauge 18 AWG
Conductor Strand Solid
Conductor Material Copper, Annealed Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Plenum
Jacket (Insulation) Diameter 0.158" (4.01mm)
Shield Type Foil
Length 500.0' (152.4m)
Jacket Color Red
Ratings ASTM B-3
Features Drain Wire, Rip Cord
Voltage 300V
Operating Temperature Range 0°C ~ 75°C
Usage Alarm, Safety
Jacket (Insulation) Thickness 0.015" (0.38mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil
Shield Coverage 100%
Win Source Part Number 769443-E3602S.18.03
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian E3602S.18.03 CAD Model

Description

The 769443-E3602S.18.03 cable from General Cable/Carol Brand is a multi-conductor cable that is used in a variety of applications.

  • Wire Gauge: 18 AWG
  • Length: 500.0' (152.4m)
  • Number of Conductors: 2
  • Voltage Rating: 300V
  • Features: Drain Wire, Rip Cord
  • Shield Coverage: 100%
  • Shield Material: Flexfoil
  • Conductor Material: Copper, Annealed Bare
  • Conductor Strand: Solid
  • Jacket Material: Poly-Vinyl Chloride (PVC), Plenum
  • Jacket Diameter: 0.158" (4.01mm)
  • Shield Type: Foil
  • Jacket Color: Red
  • Conductor Insulation: Poly-Vinyl Chloride (PVC)
  • Jacket Thickness: 0.015" (0.38mm)
  • Cable Rating: ASTM B-3
  • Temperature Range: 0°C to 75°C
  • Applications: Alarm and Safety
