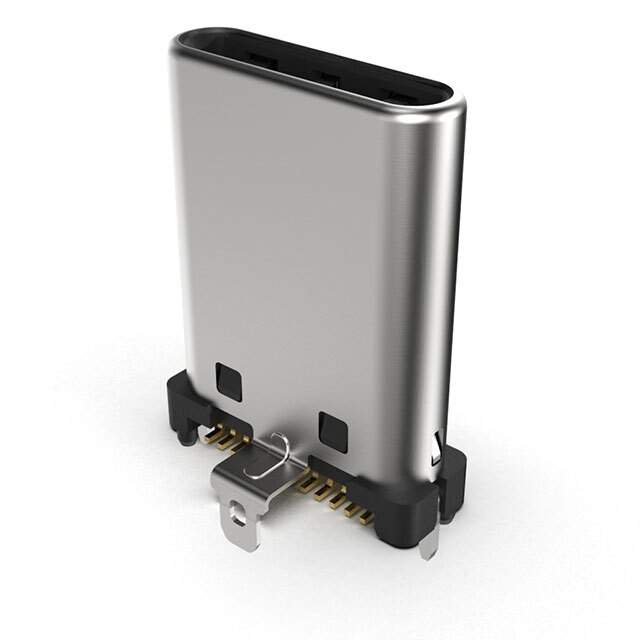

Same model may have multiple batches, images only for reference.

USB4151-GF-C

Name: USB4151-GF-C
Brand: GCT
SKU: 1341143
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	USB4151-GF-C
Manufacturer	GCT
Catalog	USB, DVI, HDMI Connectors
Description	USB TYPE C, PLUG, SMT , G/F, VER / USB-C (USB TYPE-C) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Plug Connector 24 Position Surface Mount, Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr	GCT
Series	USB4151
Package	Tape & Reel
Connector Type	USB-C (USB TYPE-C)
Number of Contacts	24
Gender	Plug
Specifications	USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0) )
Mounting Type	Surface Mount, Through Hole
Mounting Feature	Vertical
Termination	Solder
Features	Board Guide, Pick and Place Cap, Solder Retention Tab
Temperature Range - Operating	-40°C ~ 85°C
Number of Ports	1
Current Rating (Amps)	0.25A, 1.25A, 5A, 6.25A
Voltage - Rated	20VDC
Mating Cycles	10000
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Steel (SUS304)
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	USB4151
Standard Package	400
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1341143-USB4151-GF-C
Ultra Librarian 3D Model	Ultra Librarian USB4151-GF-C CAD Model

Description

The 1341143-USB4151-GF-C is a USB-C (USB TYPE-C) connector type optoelectronics product manufactured by GCT.

Features: Board Guide, Pick and Place Cap, Solder Retention Tab
Shielding: Shielded
Material Flammability Rating: UL94 V-0
Voltage - Rated: 20VDC
Current Rating (Amps): 0.25A, 1.25A, 5A, 6.25A
Mounting Feature: Vertical
Mating Cycle: 10000
MSL: 1 (Unlimited)
REACH Status: REACH unaffected
HTSUS: 8536.69.4040
Packaging: Tape & Reel (TR)
Standard Package: 400
