FT232HQ-REEL - FTDI, Future Technology Devices International Ltd

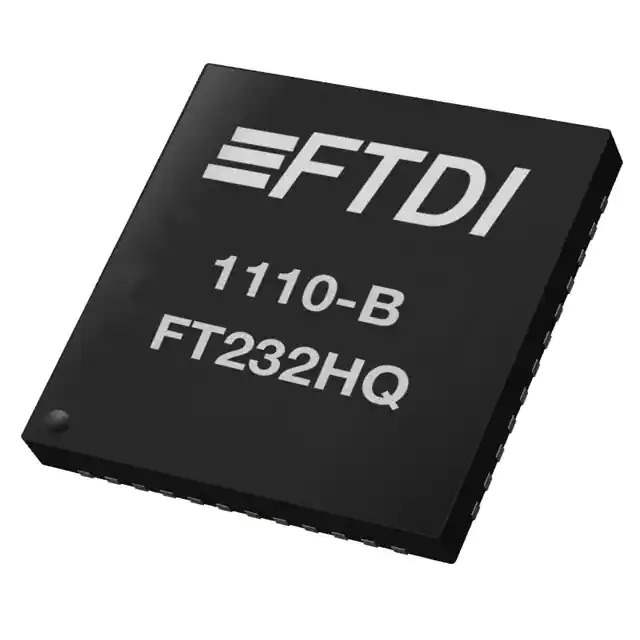

The FT232HQ-REEL is a premier USB to serial UART interface integrated circuit from FTDI (Future Technology Devices International Ltd). This high-quality chip comes in a compact QFN-48 package and is part of the widely acclaimed FT232 series known for its reliability and versatility in USB communication tasks.

At the heart of the FT232HQ-REEL is FTDI’s proprietary technology that enables seamless interfacing between a USB port and a serial UART interface. With this device, users can easily convert legacy peripherals with serial interfaces to modern USB connectivity, ensuring compatibility with contemporary computer systems.

Key Features:

• USB 2.0 Full-Speed Compatible: The chip supports USB 2.0’s full-speed operation at 12 Mbps, ensuring swift data transfer rates for a wide range of applications.
• Integrated EEPROM: The onboard EEPROM allows for the customization and storage of USB VID, PID, serial number, and other descriptors.
• Various Transfer Data Formats: It supports a variety of data formats, including 8-bit, 7-bit, data parity, and stop bits, offering flexibility for different serial communication standards.
• Low USB Bandwidth Consumption: The device is designed to consume minimal USB bandwidth, allowing for more devices to be connected without compromising performance.
• Driver Support: FTDI provides extensive driver support for major operating systems, simplifying integration and ensuring a plug-and-play experience.

Applications:

The FT232HQ-REEL is well-suited for a variety of applications, including but not limited to:

• USB to RS232/RS422/RS485 Converters
• Upgrade of Legacy Peripherals to USB
• Interface for Microcontroller UART or I/O
• Industrial Control
• Instrumentation and Test Measurement
• Point of Sale Systems

With its advanced features and robust performance, the FT232HQ-REEL by FTDI is an excellent choice for designers looking to implement USB connectivity in their systems with minimal hassle and maximum efficiency.
