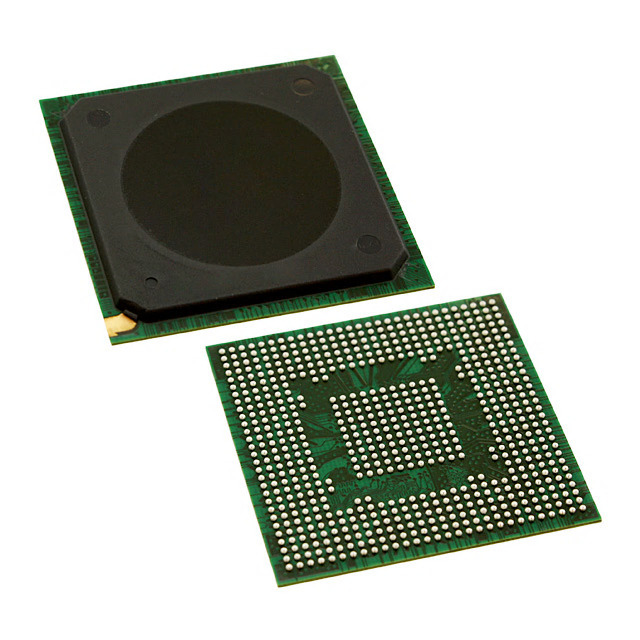

Same model may have multiple batches, images only for reference.
P1011NXE2DFB NXP
Same model may have multiple batches, images only for reference.

P1011NXE2DFB

Part No P1011NXE2DFB
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU QORIQ P1 533MHZ PBGA689
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr Freescale Semiconductor - NXP
Series QorIQ P1
Package Bulk
Product Status Active
Core Processor PowerPC e500v2
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 533MHz
Co-Processors/DSP Security; SEC 3.3
RAM Controllers DDR2, DDR3
Graphics Acceleration No
Ethernet 10/100/1000Mbps (3)
USB USB 2.0 + PHY (2)
Temperature Range - Operating -40°C ~ 125°C (TJ)
Security Features 3DES, AES, KASUMI, MD5, RNG, SHA, SNOW 3G
Mounting Type Surface Mount
Package / Case 689-BBGA Exposed Pad
Supplier Device Package 689-TEPBGA II (31x31)
Additional Interfaces DMA, DUART, I²C, MMC/SD, PCIe, SPI
Standard Package 1 pcs
ECCN 5A002A1 FRE
HTSUS 8542.31.0001
Win Source Part Number 809164-P1011NXE2DFB
Ultra Librarian 3D Model Ultra Librarian P1011NXE2DFB CAD Model

Description

The 809164-P1011NXE2DFB is an integrated circuit belonging to the QorIQ P1 series of microprocessors from Freescale Semiconductor - NXP.

  • Core Processor: PowerPC e500v2
  • Processor Speed: 533MHz
  • Cores: 1
  • Bus Width: 32-bit
  • Security Co-processor: SEC 3.3
  • RAM Controllers: DDR2, DDR3
  • Ethernet Ports: 10/100/1000Mbps
  • USB Ports: USB 2.0 + PHY
  • Additional Interfaces: DMA, DUART, I²C, MMC/SD, PCIe, SPI
  • Package: 689-BBGA exposed pad
  • Temperature Range: -40°C to 125°C
  • Product Status: Active
