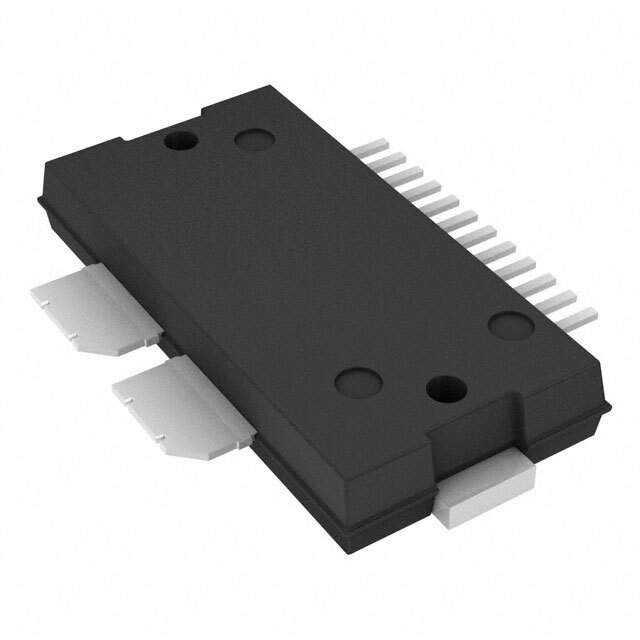

MW7IC2750NR1

Part No MW7IC2750NR1
Manufacturer Freescale Semiconductor - NXP
Catalog RF Amplifiers
Description IC PWR AMP RF 2700MHZ TO-270-14
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 2.3GHz to 2.7GHz
P1dB 47dBm (50W)
Gain 26dB
RF Type WiMax
Supply Voltage - Operating 28V
Operating Supply Current 550mA
Test Frequency 2.7GHz
Case / Package TO-270 WB-14
Win Source Part Number 041816-MW7IC2750NR1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MW7IC2750NR1 CAD Model

Description

The NXP 041816-MW7IC2750NR1 is an obsolete (EOL) RF/IF and RFID integrated circuit that operates @ a frequency range of 2.3GHz to 2.7GHz.

  • Test Frequency: 2.7GHz
  • Gain: 26dB
  • Noise Figure: is not specified
  • P1dB: 47dBm (50W)
  • Package: packaged in a TO-270 WB-14
  • Operating Supply Voltage: 28V with a current of 550mA.
