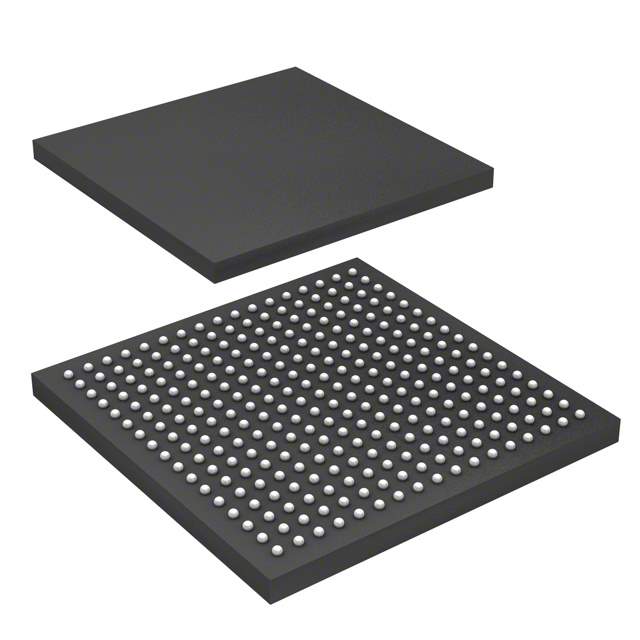

MCIMX283DVM4B Real Image MCIMX283DVM4B real image2831 MCIMX283DVM4B real image2832
Same model may have multiple batches, images only for reference.
MCIMX283DVM4B Real Image MCIMX283DVM4B real image2831 MCIMX283DVM4B real image2832
MCIMX283DVM4B Real Image MCIMX283DVM4B real image2831 MCIMX283DVM4B real image2832
Same model may have multiple batches, images only for reference.

MCIMX283DVM4B

Part No MCIMX283DVM4B
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description SOC i.MX28 ARM926EJ-S 0.08um 289-Pin MAP-BGA Tray / IC MPU I.MX28 454MHZ 289MAPBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor ARM926EJ-S
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 454MHz
Co-Processors/DSP Data; DCP
RAM Controllers LVDDR, LVDDR2, DDR2
Graphics Acceleration No
Display & Interface Controllers Keyboard, LCD, Touchscreen
Ethernet 10/100 Mbps (1)
USB USB 2.0 + PHY (2)
Voltage - I/O 1.8V, 3.3V
Temperature Range - Operating -20°C to 70°C (TA)
Security Features Boot Security, Cryptography, Hardware ID
Case / Package 289-MAPBGA (14x14)
Additional Interfaces I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, SSP, UART
Win Source Part Number 085825-MCIMX283DVM4B
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name MCIMX283
Introduction Date November 10, 2010
ECCN 5A992.c
Country of Origin China, Taiwan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MCIMX283DVM4B CAD Model

Description

The NXP 085825-MCIMX283DVM4B is an integrated circuit with an ARM926EJ-S core processor.

  • Core Processor: ARM926EJ-S
  • Core Count: 1
  • Bus Width: 32-bit
  • Co-Processors/DSP: Data and DCP
  • RAM Controllers: LVDDR, LVDDR2, and DDR2
  • Display and Interface Controllers: Keyboard, LCD, and Touchscreen
  • USB: 2.0 + PHY (2)
  • Voltage I/O: 1.8V and 3.3V
  • Additional Interfaces: I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, SSP, and UART
  • Package: 289-MAPBGA (14x14)
  • Speed: 454MHz
  • Operating Temperature: -20°C to 70°C (TA)
