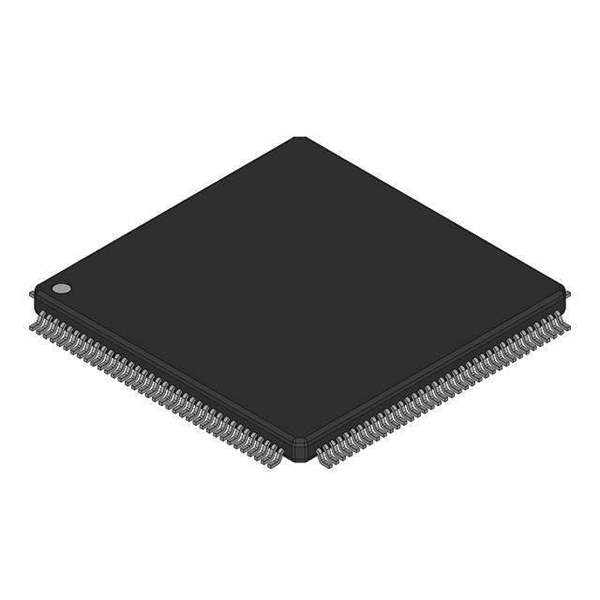

MC9S12XDT256MAG Real Image
Same model may have multiple batches, images only for reference.

MC9S12XDT256MAG

Part No MC9S12XDT256MAG
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 256KB FLASH 144LQFP
Datasheet
MC9S12XDT256MAG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Obsolete(EOL)
Core Processor HCS12X
Part Core Size 16-Bit
Speed(Frequency) 80MHz
Number of I/O 119
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
Data RAM Size 16K x 8
Supply Voltage - Operating 2.35 V to 5.5 V
Data Converters A/D 24x10b
Oscillator Type External
Temperature Range - Operating -40°C to 125°C (TA)
Case / Package 144-LQFP (20x20)
Win Source Part Number 074802-MC9S12XDT256MAG
Ultra Librarian 3D Model Ultra Librarian MC9S12XDT256MAG CAD Model

Description

The NXP 074802-MC9S12XDT256MAG is an integrated circuit (IC) from the HCS12X family.

  • Suitable For: Various Applications
  • Program Memory Size: 256KB (256K x 8)
  • Program Memory Type: FLASH
  • Oscillator Type: External
  • Temperature Range: -40°C to 125°C (TA)
  • Status: Obsolete (EOL)
  • Win Source Part Number: 074802-MC9S12XDT256MAG
