Same model may have multiple batches, images only for reference.

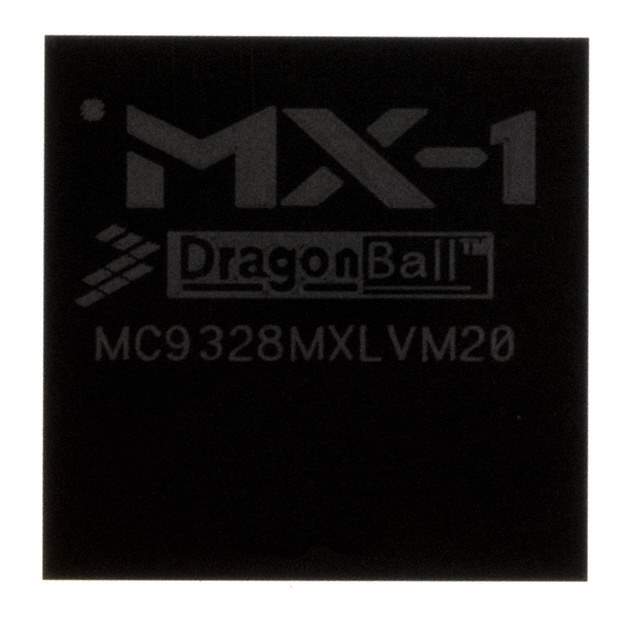

MC9328MXLVM20 Real Image
Same model may have multiple batches, images only for reference.

MC9328MXLVM20

Part No MC9328MXLVM20
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description SOC i.MX ARM9TDMI 256-Pin MAP-BGA Tray / IC MPU I.MXL 200MHZ 256MAPBGA
Datasheet
MC9328MXLVM20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Not For New Designs
Core Processor ARM920T
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 200MHz
RAM Controllers SDRAM
Graphics Acceleration No
Display & Interface Controllers LCD
USB USB 1.x (1)
Voltage - I/O 1.8V, 3.0V
Temperature Range - Operating 0°C to 70°C (TA)
Security Package / Case 256-LFBGA
Additional Interfaces I2C, I2S, SPI, SSI, MMC/SD, UART
Win Source Part Number 109694-MC9328MXLVM20
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name MC9328MXL
Introduction Date April 08, 2003
ECCN 3A991.a.2
Halogen Free Not Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian MC9328MXLVM20 CAD Model

Description

The NXP 109694-MC9328MXLVM20 is a 32-bit microcontroller with a core processor of ARM920T.

  • Core Processor: ARM920T
  • Bit: 32-bit
  • Core(s): 1
  • Bus Width: 32-bit
  • Packaging: Tray
  • RAM Controller: SDRAM
  • Voltage I/O: 1.8V and 3.0V
  • Additional Interfaces: I2C, I2S, SPI, SSI, MMC/SD, and UART
  • IC Category: Integrated Circuits
  • Status: Not for new designs
  • Temperature Range: 0°C to 70°C (TA)
  • Speed (Frequency): 200MHz
  • Security Package/Case: 256-LFBGA
  • Supply and Demand Status: Balanced
  • EOL Date: Estimated to reach its EOL date in 2022
