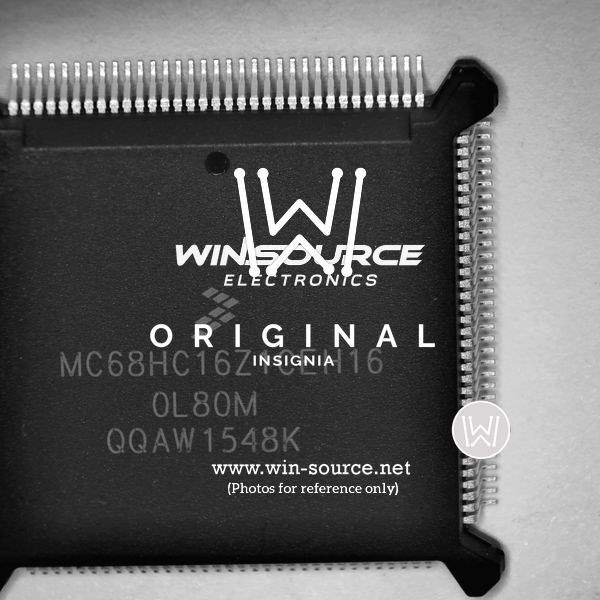

MC68HC16Z1CEH16 Real Image MC68HC16Z1CEH16 real image2770 MC68HC16Z1CEH16 Real Image1 MC68HC16Z1CEH16 Real Image2 MC68HC16Z1CEH16 Real Image3 MC68HC16Z1CEH16 Real Image4
Same model may have multiple batches, images only for reference.
MC68HC16Z1CEH16 Real Image MC68HC16Z1CEH16 real image2770 MC68HC16Z1CEH16 Real Image1 MC68HC16Z1CEH16 Real Image2 MC68HC16Z1CEH16 Real Image3 MC68HC16Z1CEH16 Real Image4
MC68HC16Z1CEH16 Real Image MC68HC16Z1CEH16 real image2770 MC68HC16Z1CEH16 Real Image1 MC68HC16Z1CEH16 Real Image2 MC68HC16Z1CEH16 Real Image3 MC68HC16Z1CEH16 Real Image4
Same model may have multiple batches, images only for reference.

MC68HC16Z1CEH16

Part No MC68HC16Z1CEH16
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT ROMLESS 132QFP / MCU 16-bit HC16 CISC ROMLess 3.3V/5V Automotive 132-Pin PQFP Tray
Datasheet
MC68HC16Z1CEH16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Not For New Designs
Core Processor CPU16
Part Core Size 16-Bit
Speed(Frequency) 16MHz
Number of I/O 16
Program Memory Type ROMless
Data RAM Size 1K x 8
Supply Voltage - Operating 2.7 V to 5.5 V
Data Converters A/D 8x10b
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 132-PQFP (24.13x24.13)
Win Source Part Number 207951-MC68HC16Z1CEH16
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name MC68HC16Z1C
Introduction Date April 15, 2004
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian MC68HC16Z1CEH16 CAD Model

Description

The NXP MC68HC16Z1CEH16 is a 16-bit microcontroller that has a program memory type of ROMless and a data RAM size of 1K x 8.

  • Program Memory Type: ROMless
  • Data RAM Size: 1K x 8
  • Popularity: High
  • Supply and Demand Status: Limited
  • Manufacturer: NXP
  • Suitable for: Automotive, medical, and industrial applications
  • Temperature Range: -40°C to 85°C (TA)
  • Supply Voltage Range: 2.7 V to 5.5 V
