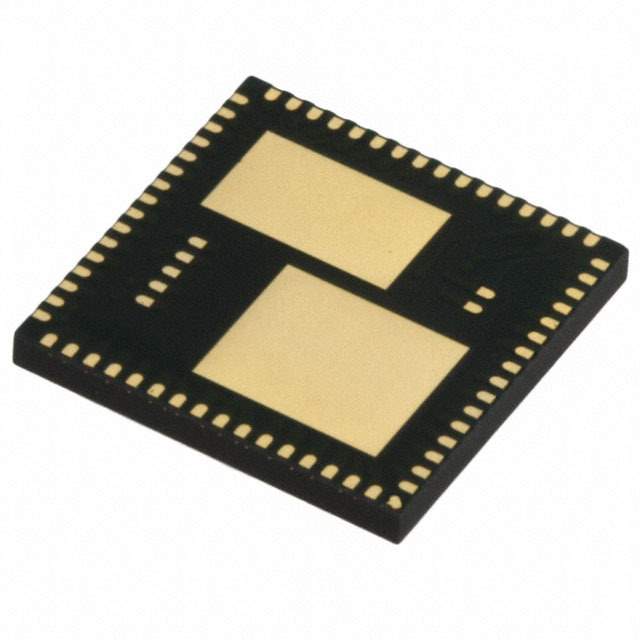

MC13211 Real Image
Same model may have multiple batches, images only for reference.

MC13211

Part No MC13211
Manufacturer Freescale Semiconductor - NXP
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU 802.15.4 71-VFLGA
Datasheet
MC13211 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Tray
Status Not For New Designs
Type TxRx + MCU
RF Family/Standard 802.15.4
Modulation DSSS, O-QPSK
Frequency 2.4GHz
Data Rate (Max) 250kbps
Power - Output 3dBm
Sensitivity -92dBm
Memory Size 16kB Flash, 1kB RAM
Serial Interfaces I2C, SPI
GPIO 32
Supply Voltage - Operating 2 V to 3.4 V
Current - Receiving 37mA
Current - Transmitting 30mA
Temperature Range - Operating -40°C to 85°C
Dimension 71-VFLGA
Win Source Part Number 022545-MC13211
Ultra Librarian 3D Model Ultra Librarian MC13211 CAD Model

Description

The NXP MC13211 is a TxRx + MCU type integrated circuit designed for 2.4GHz frequency.

  • Memory: 16kB flash memory and 1kB RAM
  • Power Output: 3dBm
  • Sensitivity: -92dBm
  • Data Rate (Max): 250kbps
  • Current (Receiving): 37mA
  • Current (Transmitting): 30mA
  • Category: RF/IF and RFID
  • RF Family/Standard: 802.15.4
  • Modulation: DSSS, O-QPSK
  • GPIO: 32
  • Serial Interfaces: I2C and SPI
  • Temperature Range: -40°C to 85°C
  • Dimension: 71-VFLGA
  • Supply Voltage: 2V to 3.4V
