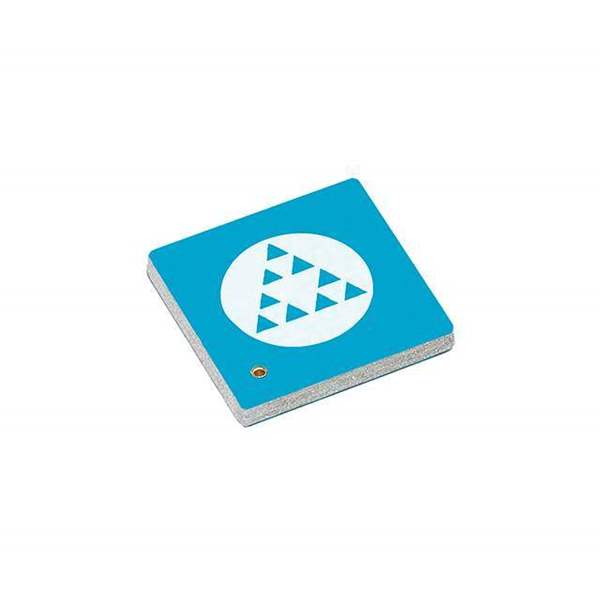

FR05-S1-N-0-001 Fractus
Same model may have multiple batches, images only for reference.

FR05-S1-N-0-001

Part No FR05-S1-N-0-001
Manufacturer Fractus
Catalog HOT - SALES and EOL Components
Description REACH XTEND - 001
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Fractus Antennas S.L.
Packaging Reel
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.45GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 2
Gain 1.3dBi
Termination Solder
Mounting Style SMD
Height (Maximum) 0.031" (0.80mm)
Applications 802.11b/g/n, Bluetooth, WLAN, Zigbee
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 32761-FR05-S1-N-0-001
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FR05-S1-N-0-001 CAD Model

Description

The Fractus Antennas S.L. chip antenna is a high-performance antenna designed for use in wireless communication applications. It is a surface-mount device with a frequency range of 2.4GHz to 2.5GHz. The antenna is suitable for use in 802.11b/g/n, Bluetooth, WLAN, and Zigbee applications. The chip antenna has a gain of 1.3dBi and a VSWR of 2. It is a single-band antenna with a frequency (center/band) of 2.45GHz. The antenna is packaged in a reel and has a solder termination. The Fractus Antennas S.L. The supply and demand status is balanced, and the manufacturer pack quantity is 1. The MSL level is 3 (168 hours).
