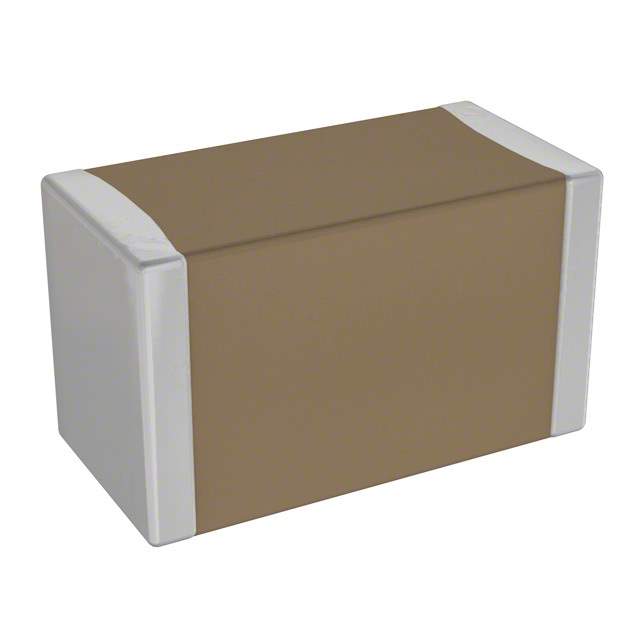

The Fenghua Electronics 0603B561K500NT is a multilayer ceramic capacitor (MLCC). It's a surface mount device (SMD) with a 0603 case size, indicating its compact dimensions. MLCCs are widely used in electronic circuits for decoupling, bypassing, filtering, and energy storage due to their stability, small size, and low cost.

Applications:

• Decoupling Capacitors: Used to decouple noise on power rails in digital circuits.
• Bypass Capacitors: Used to bypass AC signals to ground, reducing noise.
• Filtering: Used in low-pass, high-pass, and band-pass filters to shape frequency responses.
• Timing Circuits: Used in timing circuits and oscillators.
• Energy Storage: Used for short-term energy storage in portable devices.

Features:

• Small Size: 0603 case size allows for high-density mounting on PCBs.
• Surface Mount Technology (SMT): Facilitates automated assembly.
• Multilayer Ceramic Construction: Provides high capacitance in a small volume.
• Stable Performance: Offers stable capacitance over a wide range of temperatures and frequencies.
• Low ESR: Low Equivalent Series Resistance (ESR) for minimal power loss.

Benefits:

• Reduced Noise: Effective decoupling and bypassing reduce noise in electronic circuits.
• Space Savings: Small size enables miniaturization of electronic devices.
• Reliable Performance: Stable capacitance ensures consistent and predictable behavior.
• Cost-Effective: MLCCs are a cost-effective solution for various applications.
• Versatile Applications: Suitable for a wide range of electronic circuits.

Additional Details:

The 0603B561K500NT capacitor is typically manufactured using barium titanate (BaTiO3) as the dielectric material. It is designed to meet industry standards and is suitable for use in various operating conditions.

Technical Specifications (Typical):

• Capacitance: 560 pF (561)
• Tolerance: ±10% (K)
• Voltage Rating: 50V (500)
• Temperature Coefficient: Typically X7R or similar (check datasheet for exact value)
• Operating Temperature Range: -55°C to +125°C (typical)
