Same model may have multiple batches, images only for reference.

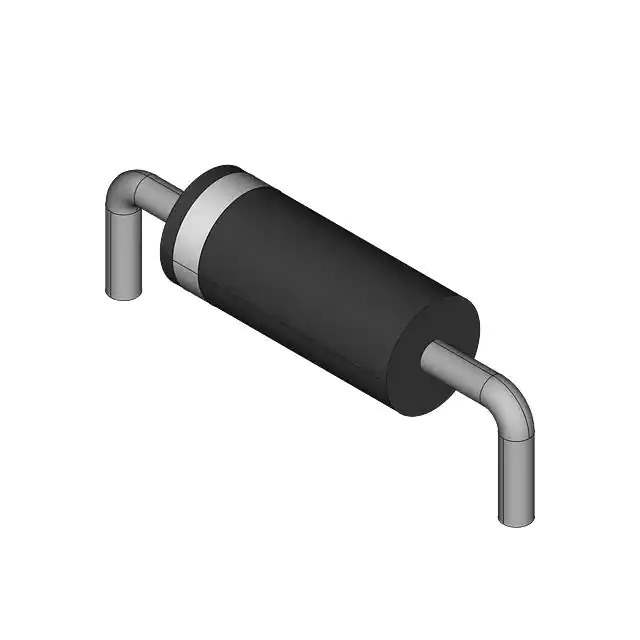

SA26CA Real Image
Same model may have multiple batches, images only for reference.

SA26CA

Part No SA26CA
Manufacturer Fairchild/ON Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 26VWM 42.1VC DO204AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Fairchild/ON Semiconductor
Series SA
Package Bulk
Product Status Obsolete
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 26V
Voltage - Breakdown (Min) 28.9V
Voltage - Clamping (Max) @ Ipp 42.1V
Current - Peak Pulse (10/1000µs) 12.1A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-204AC (DO-15)
Standard Package 1,995 pcs
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 663333-SA26CA
Ultra Librarian 3D Model Ultra Librarian SA26CA CAD Model

Description

The 663333-SA26CA is a zener diode transient voltage suppressor (TVS) designed for general-purpose circuit protection. It features a through-hole mounting type and comes in a DO-204AC, DO-15, Axial package, providing easy installation.

  • Mounting Type: through-hole
  • Package: DO-204AC, DO-15, Axial
  • Reverse Standoff Voltage: 26V
  • Breakdown Voltage: 28.9V
  • Clamping Voltage: 42.1V @ peak pulse power of 500W
  • Temperature Range: -55°C to 175°C
  • Ideal Choice: for applications that require reliable transient voltage protection.
