Same model may have multiple batches, images only for reference.

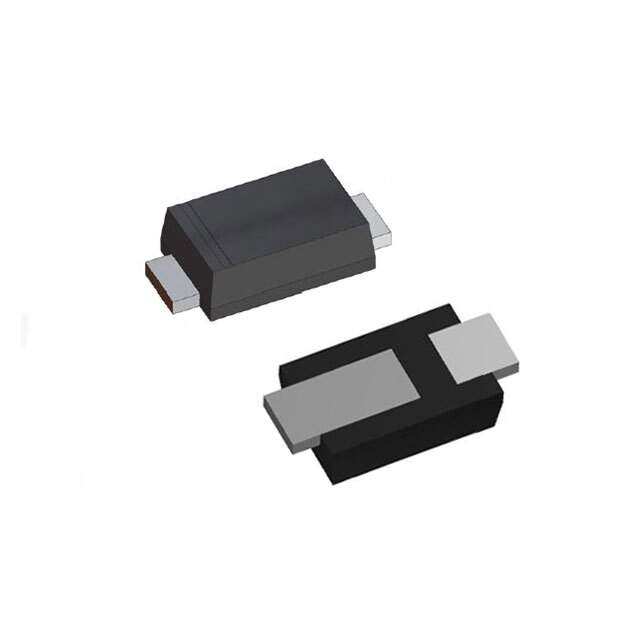

RS1JFP Real Image
Same model may have multiple batches, images only for reference.

RS1JFP

Part No RS1JFP
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE FAST 600V 1.2A SOD-123HE
Datasheet
RS1JFP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 1.2A
Voltage - Forward (Vf) (Max) @ If 1.3V @ 1.2A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 300ns
Current - Reverse Leakage @ Vr 5μA @ 600V
Capacitance @ Vr, F 18pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-123HE
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1092704-RS1JFP
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian RS1JFP CAD Model

Description

The Fairchild/ON Semiconductor RS1JFP standard diode is designed for use in high-frequency rectification applications.

  • Maximum Reverse Voltage: 600V
  • Forward Voltage: 1.3V @ 1.2A
  • Recovery Time: 200mA
  • Reverse Leakage Current: 5μA @ 600V
  • Mounting: SMD (SMT)
  • Packaging: Reel - TR
  • Capacitance: 18pF @ 0V, 1MHz
  • Operating Temperature Range: -55°C to 150°C
  • Popularity: Popular choice
  • Demand: Medium
  • Quantity per Package: 3k pcs
