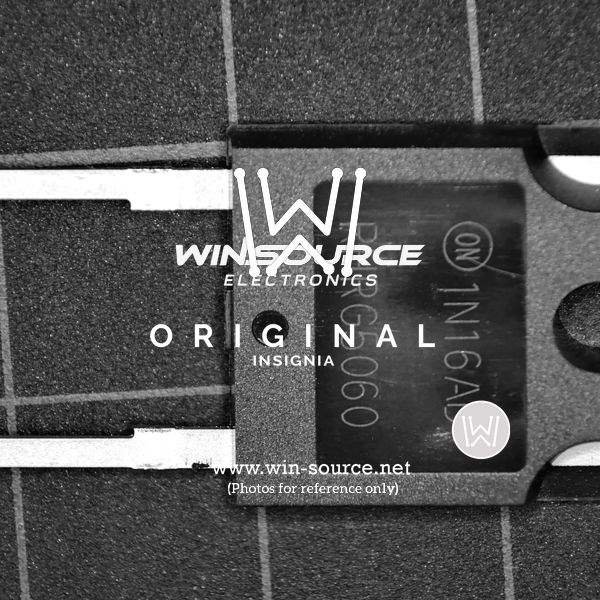

RHRG5060 Real Image RHRG5060 Real Image
Same model may have multiple batches, images only for reference.
RHRG5060 Real Image RHRG5060 Real Image
RHRG5060 Real Image RHRG5060 Real Image
Same model may have multiple batches, images only for reference.

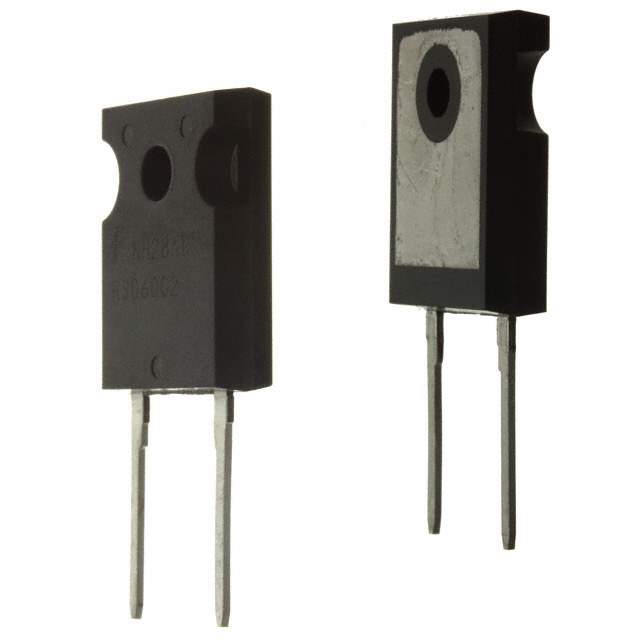

RHRG5060

Part No RHRG5060
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 50A TO247
Datasheet
RHRG5060 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 50A
Voltage - Forward (Vf) (Max) @ If 2.1V @ 50A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 250μA @ 600V
Mounting Through Hole
Case / Package TO-247-2
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 089160-RHRG5060
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 450
Ultra Librarian 3D Model Ultra Librarian RHRG5060 CAD Model

Description

The RHRG5060 is a high-performance, fast recovery diode manufactured by Fairchild/ON Semiconductor.

  • Supply and Demand Status: Limited
  • Popularity: High
  • Operating Temperature Range: -65°C to 175°C
  • Maximum Reverse Voltage: 600V
  • Current Rating: 50A
  • Forward Voltage: 2.1V @ 50A
