Same model may have multiple batches, images only for reference.

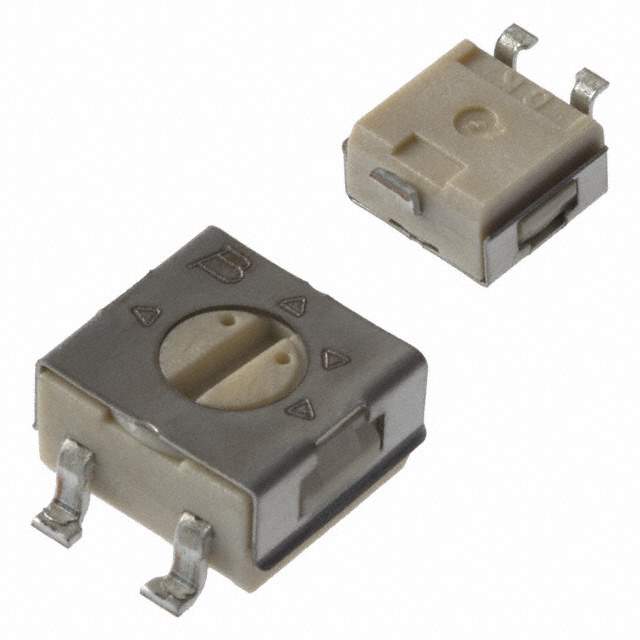

3314G-1-202E Real Image
Same model may have multiple batches, images only for reference.

3314G-1-202E

Part No 3314G-1-202E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description 3314 - 4 mm Square Trimpot Trimming Potentiometer | TRIMMER 2K OHM 0.25W GW TOP ADJ
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel
Resistance 2 kOhms
Power (W) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Style SMD
Termination Style Gull Wing
Parts Dimension Square - 0.177" x 0.177" Face x 0.100" H (4.50mm x 4.50mm x 2.55mm)
Family Part Number 3314G
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1128212-3314G-1-202E
Manufacturer Homepage www.bourns.com
Family Name 3314
Introduction Date December 24, 2006
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2025
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Ultra Librarian 3D Model Ultra Librarian 3314G-1-202E CAD Model

Description

The Bourns Inc. 3314G series potentiometer is a high-quality variable resistor used in various industrial, consumer electronics, portable devices, and power management applications. With a resistance of 2 kOhms, this potentiometer uses cermet as its resistive material and has a tolerance of ±20%.

  • Resistance: 2 kOhms
  • Resistive Material: cermet
  • Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W, 1/4W
  • Adjustment Feature: top adjustment
  • Mounting: surface mount device (SMD) technique
  • Termination Style: gull-wing
  • Packaging: reel
  • Estimated EOL date: 2025
  • Halogen-free: compliant
  • Supply and demand status: sufficient
